RE274.0200.4.1A.05 IG35
Recommended:
Material number RE274020041A05IG35

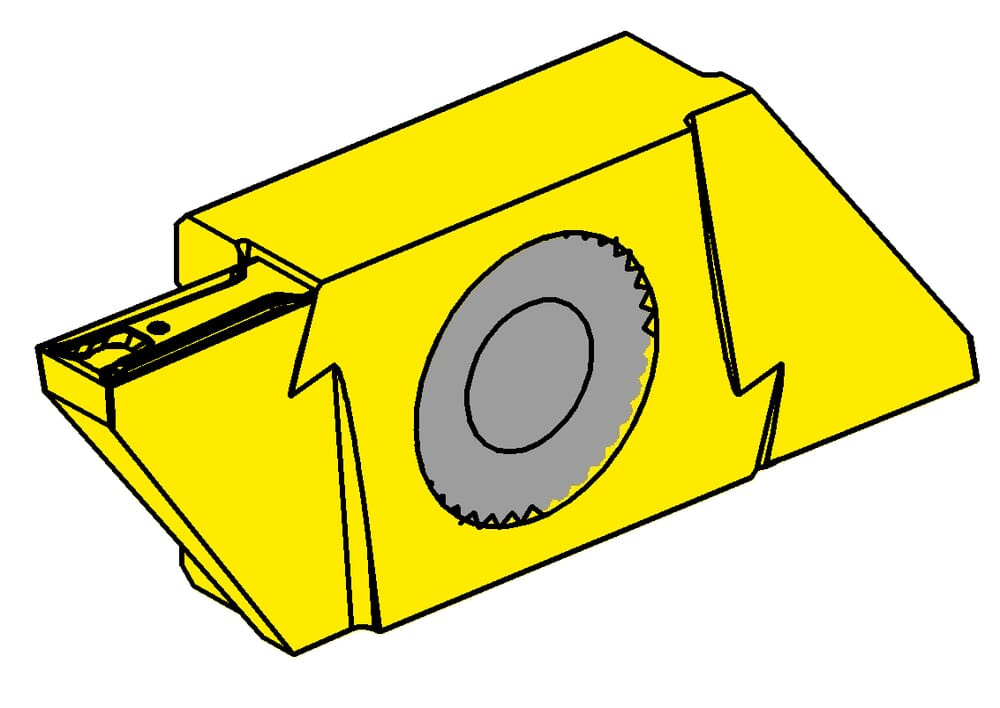

HORN Insert RE274.0200.4.1A.05 IG35 for Turning
Katalog_SSC
274040R
us-cutting
Yes
Width of groove (mm) (w)
0.079 ˝
2 mm
Corner radius (r)
0.002 ˝
0.05 mm
machining-direction-sap
right
tool-application
static
Maximum depth of groove (tmax)
0.157 ˝
4 mm
| Downloads | |
|---|---|
| RE274_0200_4_1A_05_IG35-DXF.DXF | Download |
| RE274_0200_4_1A_05_IG35-STP.STP | Download |
| RE274_0200_4_1A_05IG35-ISO.XML | Download |
| RE274_0200_4_1A_05IG35-DIN.XML | Download |
| Download all files | |
