RE274.0100.3.1A.10 IG35
Recommended:
Material number RE274010031A10IG35

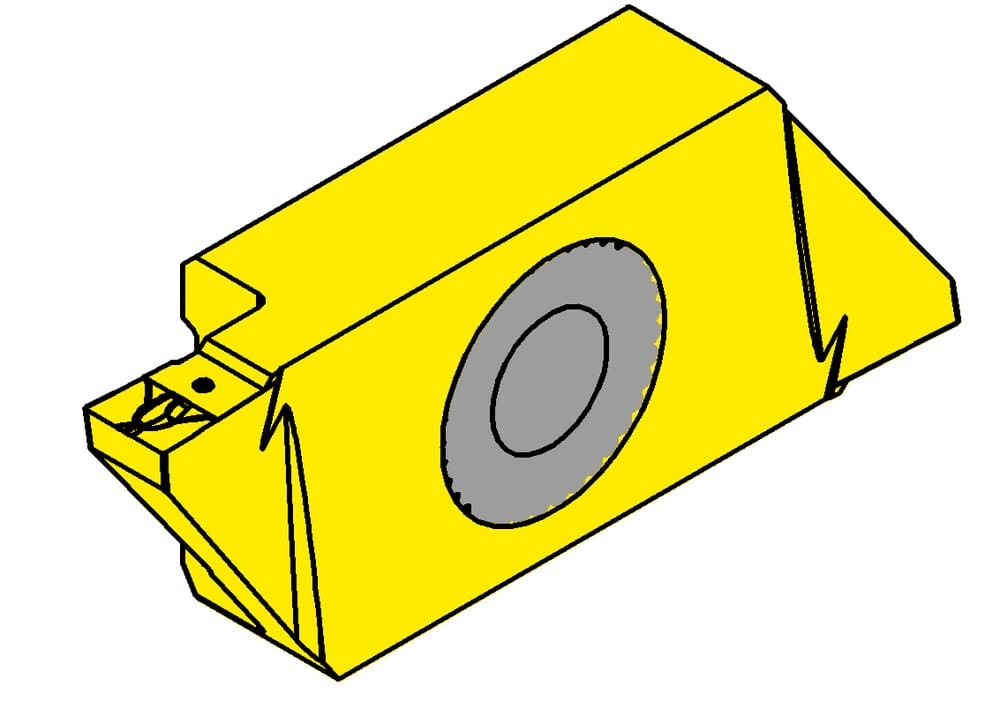

HORN Insert RE274.0100.3.1A.10 IG35 for Turning
Katalog_SSC
274040R
us-cutting
Yes
Width of groove (mm) (w)
0.039 ˝
1 mm
Corner radius (r)
0.004 ˝
0.1 mm
machining-direction-sap
right
tool-application
static
Maximum depth of groove (tmax)
0.118 ˝
3 mm
| Downloads | |
|---|---|
| RE274_0100_3_1A_10_IG35-DXF.DXF | Download |
| RE274_0100_3_1A_10_IG35-STP.STP | Download |
| RE274_0100_3_1A_10IG35-ISO.XML | Download |
| RE274_0100_3_1A_10IG35-DIN.XML | Download |
| Download all files | |
