RA110.2030.3.0 TI25
Alternative Recommendation:
Recommended:
Material number RA110203030TI25

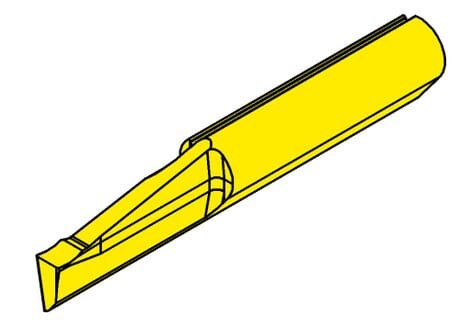

HORN Inserts RA110.2030.3.0 TI25 for Turning
Width of groove (mm) (w)
0.118 ˝
3 mm
tool-application
static
machining-direction-sap
right
Total length (l5)
1.969 ˝
50 mm
Setting range radial (f)
0.059 ˝
1.5 mm
Maximum depth of groove (tmax a)
0.787 ˝
20 mm
Corner radius (r)
0.008 ˝
0.2 mm
Katalog_SSC
110260
Smallest axial bore diameter (Da min)
0.787 ˝
20 mm
| Downloads | |
|---|---|
| RA110_2030_3_0_TI25-DXF.DXF | Download |
| RA110_2030_3_0_TI25-STP.STP | Download |
| RA110_2030_3_0_TI25-ISO.XML | Download |
| RA110_2030_3_0_TI25-DIN.XML | Download |
| Download all files | |
