RA105.1020.2.2 TI25
Recommended:
Also suitable for:
Material number RA105102022TI25

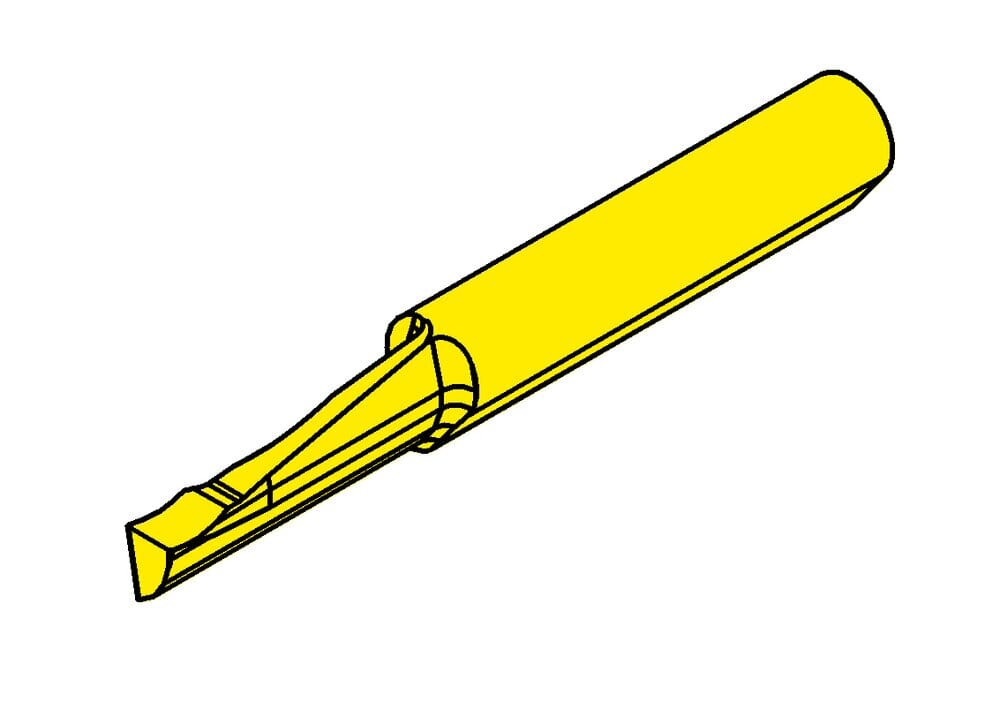

HORN Insert RA105.1020.2.2 TI25 for Turning
Total length (l5)
1.575 ˝
40 mm
tool-application
static
machining-direction-sap
right
Width of groove (mm) (w)
0.079 ˝
2 mm
Adjustment dimension cutting center (f)
0.055 ˝
1.4 mm
Corner radius (r)
0.004 ˝
0.1 mm
Katalog_SSC
105225
Smallest axial bore diameter (Da min)
0.394 ˝
10 mm
Maximum depth of groove (tmax a)
0.591 ˝
15 mm
Maximum starting outside diameter (Da max)
44 mm
| Downloads | |
|---|---|
| RA105_1020_2_2_TI25-DXF.DXF | Download |
| RA105_1020_2_2_TI25-STP.STP | Download |
| RA105_1020_2_2_TI25-ISO.XML | Download |
| RA105_1020_2_2_TI25-DIN.XML | Download |
| Download all files | |
