R314.8043.00 TN35
Also suitable for:
Material number R314804300TN35

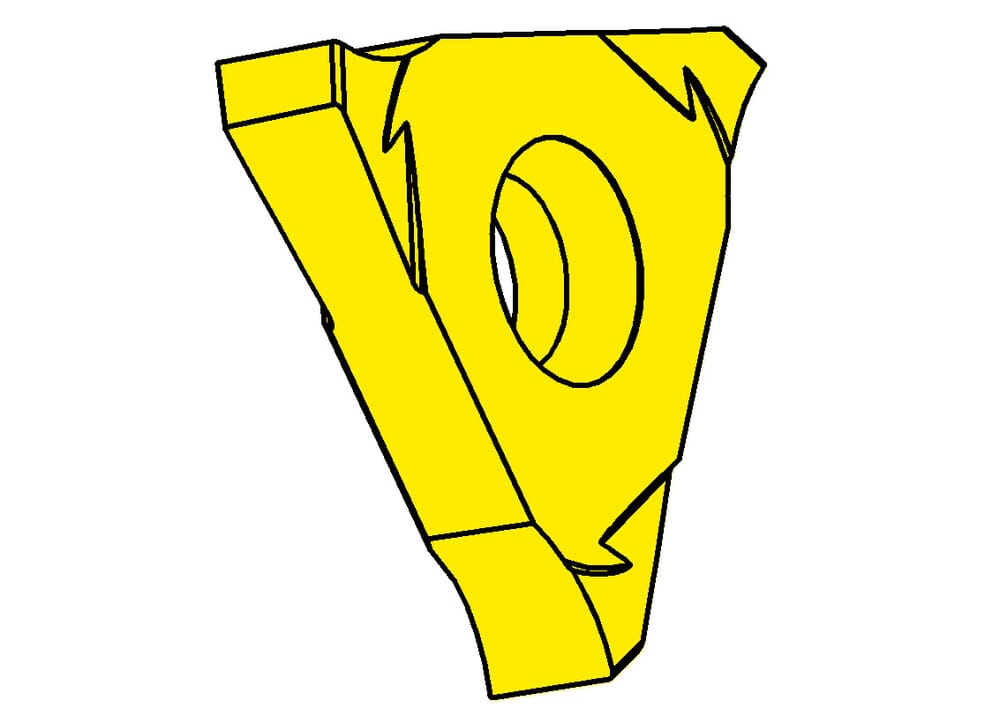

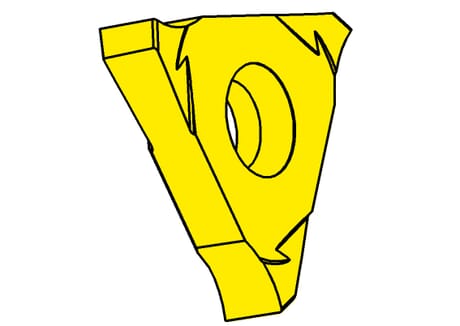

HORN Inserts R314.8043.00 TN35 for Milling
us-cutting
Yes
cutting
1
tool-application
rotating
machining-direction-sap
right
groove-width-met
0.315 ˝
8 mm
Plate thickness without cutting edge (s)
0.161 ˝
4.1 mm
Width of groove (mm) (bs)
0.169 ˝
4.3 mm
Corner radius (r)
0.008 ˝
0.2 mm
Katalog_SSC
314041R
| Downloads | |
|---|---|
| R314_8043_00_TN35-ISO.XML | Download |
| R314_8043_00_TN35-DXF.DXF | Download |
| R314_8043_00_TN35-STP.STP | Download |
| R314_8043_00_TN35-DIN.XML | Download |
| Download all files | |
