R264.0815.10 MG12
Recommended:
Material number R264081510MG12

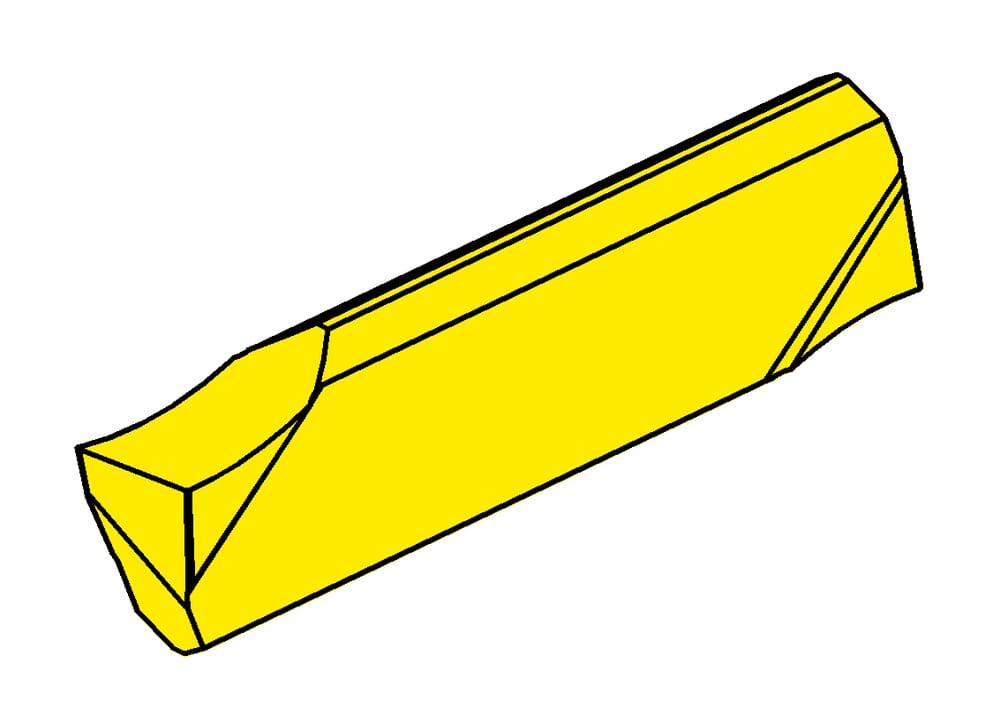

HORN Inserts R264.0815.10 MG12 for Turning
us-cutting
Yes
tool-application
static
machining-direction-sap
right
Corner radius (mm) (r)
0.002 ˝
0.05 mm
Parting-off chamfer (α)
8 °
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Katalog_SSC
26401
| Downloads | |
|---|---|
| R264_0815_10_MG12-DXF.DXF | Download |
| R264_0815_10_MG12-STP.STP | Download |
| R264_0815_10_MG12-ISO.XML | Download |
| R264_0815_10_MG12-DIN.XML | Download |
| Download all files | |
