R116.1020.01 TH35

Recommended:

Also suitable for:

Material number R116102001TH35

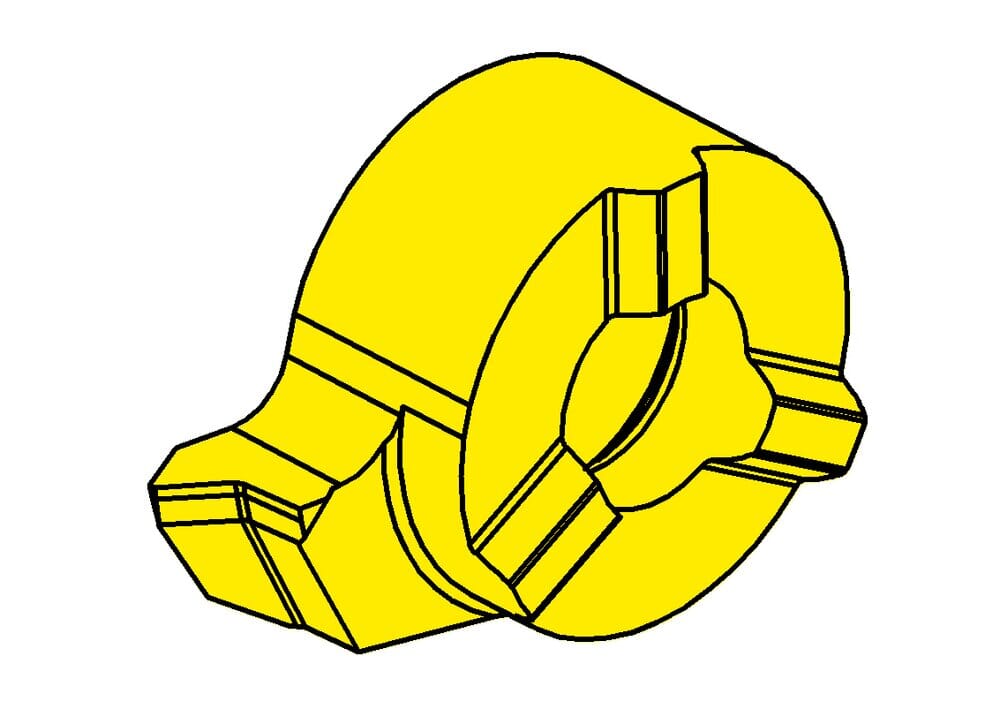

HORN insert R116.1020.01 TH35 for Gewinden

Smallest bore diameter (Dmin)

0.63 ˝

16 mm

us-cutting

Yes

cutting

tool-application

static

machining-direction-sap

right

Pitch (P)

0.079 ˝

2 mm

Cutting insert height, Cutting insert thickness (s)

0.217 ˝

5.5 mm

Setting length (E)

0.169 ˝

4.3 mm

Tooth diameter, head diameter (d)

0.433 ˝

11 mm

Cutting insert width (a)

0.618 ˝

15.7 mm

Setting range radial (f)

0.402 ˝

10.2 mm

Katalog_SSC

116110R
