R114.1425.12 TN35

Material number R114142512TN35

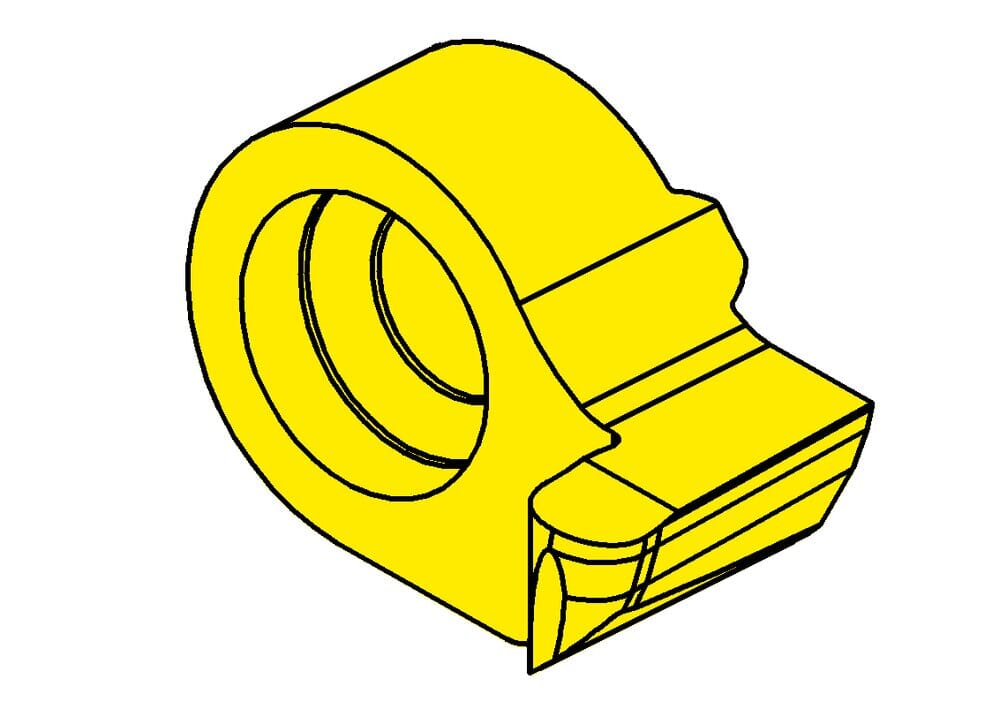

HORN Inserts R114.1425.12 TN35 for Turning

Width of groove (w)

0.098 ˝

2.5 mm

tool-application

static

machining-direction-sap

right

Cutting insert height, Cutting insert thickness (s)

0.327 ˝

8.3 mm

Setting range radial (f)

0.354 ˝

9 mm

Head size (a)

0.531 ˝

13.5 mm

Katalog_SSC

114090R

Full radius (r)

0.049 ˝

1.25 mm

Smallest axial bore diameter (Da min)

0.551 ˝

14 mm

Maximum depth of groove (tmax a)

0.118 ˝

3 mm
