R114.1420.10 EG55
Recommended:
Also suitable for:
Material number R114142010EG55

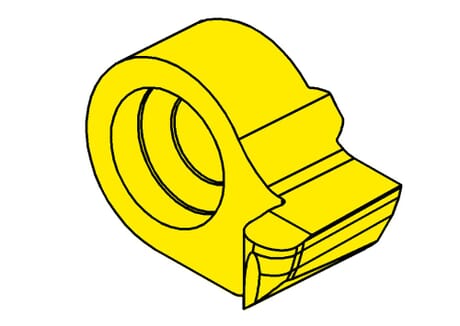

HORN Insert R114.1420.10 EG55 for Turning
Note: R = rotation clockwise. When using this insert on a B114 holder, l1 and l2 will be enlarged by 3 mm. Full radius machining in-front of center line.
Cutting insert height, Cutting insert thickness (s)
0.327 ˝
8.3 mm
Setting range radial (f)
0.354 ˝
9 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
us-cutting
Yes
machining-direction-sap
right
Katalog_SSC
114090R
tool-application
static
Full radius (r)
0.039 ˝
1 mm
Smallest axial bore diameter (Da min)
0.551 ˝
14 mm
Maximum depth of groove (tmax a)
0.118 ˝
3 mm
Head size (a)
0.531 ˝
13.5 mm
| Downloads | |
|---|---|
| R114_1420_10_EG55-DXF.DXF | Download |
| R114_1420_10_EG55-STP.STP | Download |
| R114_1420_10_EG55-ISO.XML | Download |
| R114_1420_10_EG55-DIN.XML | Download |
| Download all files | |
