R111.1020.01 TN35

Also suitable for:

Material number R111102001TN35

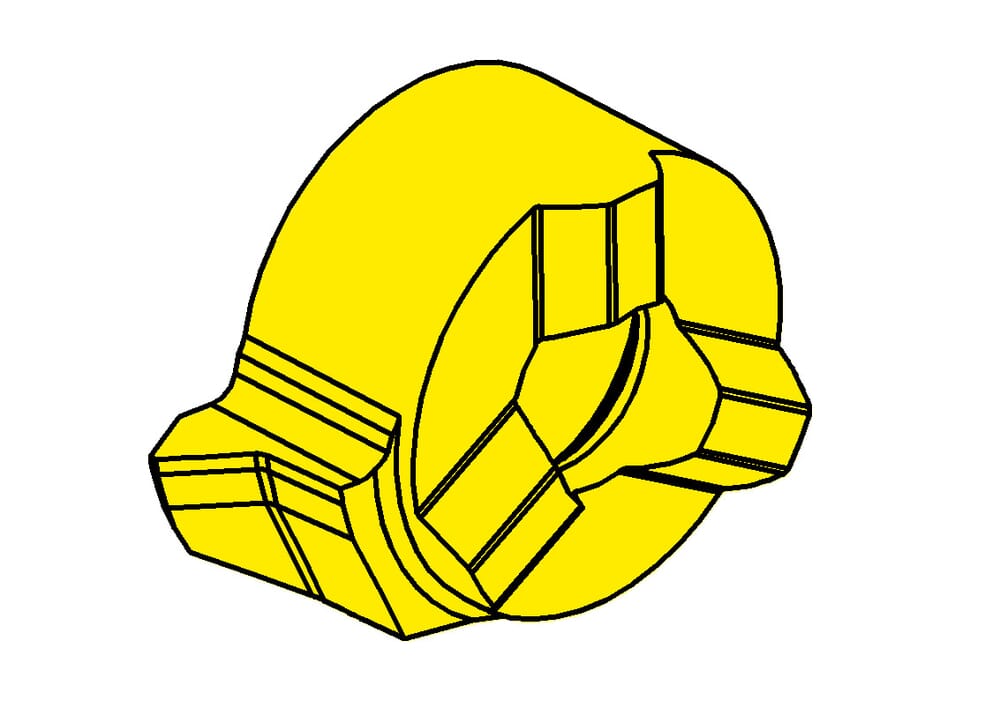

HORN Inserts R111.1020.01 TN35 for Gewinden

tool-application

rotating

Smallest bore diameter (Dmin)

0.433 ˝

11 mm

Pitch (P)

0.079 ˝

2 mm

Maximum pitch (Pmax)

0.079 ˝

2 mm

machining-direction-sap

right

Cutting insert height, Cutting insert thickness (s)

0.163 ˝

4.15 mm

us-cutting

Yes

Cutting diameter (Ds)

0.528 ˝

13.4 mm

Katalog_SSC

111080R

Setting range radial (f)

0.264 ˝

6.7 mm

Cutting insert width (a)

0.421 ˝

10.7 mm

Tooth diameter, head diameter (d)

0.315 ˝

8 mm

Setting length (E)

0.118 ˝

3 mm
