R105.9023.01.2.5 TH35
Recommended:
Also suitable for:
Material number R10590230125TH35

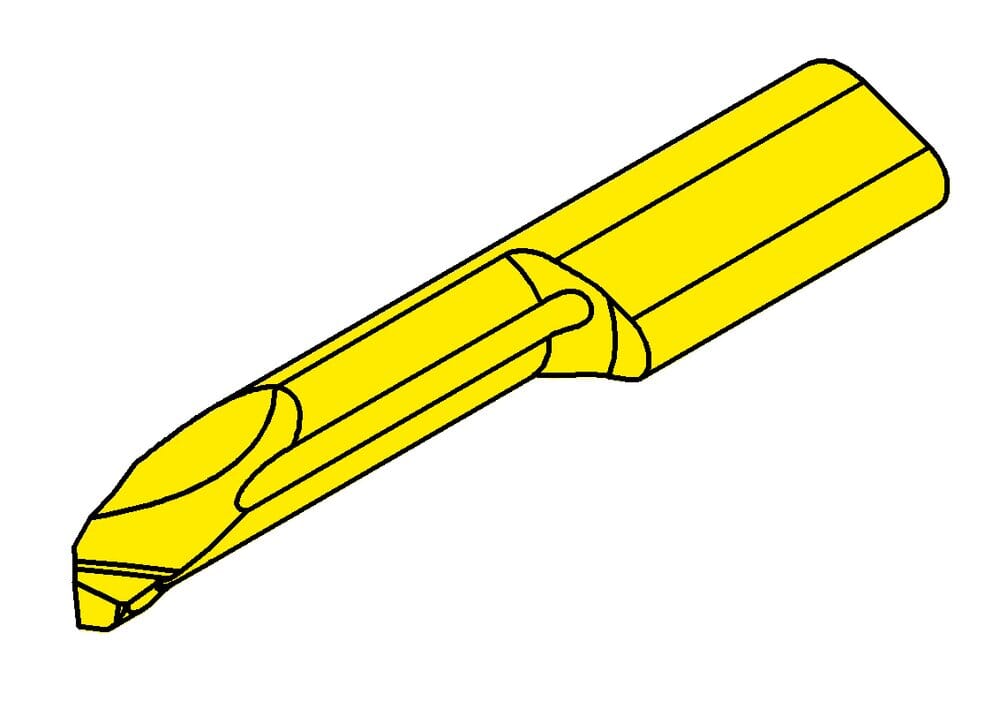

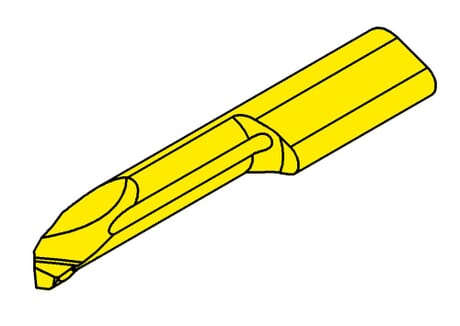

HORN Insert R105.9023.01.2.5 TH35 for Turning
machining-direction-sap
right
Neck diameter (d)
0.157 ˝
4 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
1.181 ˝
30 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
tool-application
static
cutting
1
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105125
Top radius (r)
0.004 ˝
0.1 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.02 ˝
0.5 mm
Head size (a)
0.185 ˝
4.7 mm
