R105.4733.5.6.2 TI25
Recommended:
Also suitable for:
Material number R1054733562TI25

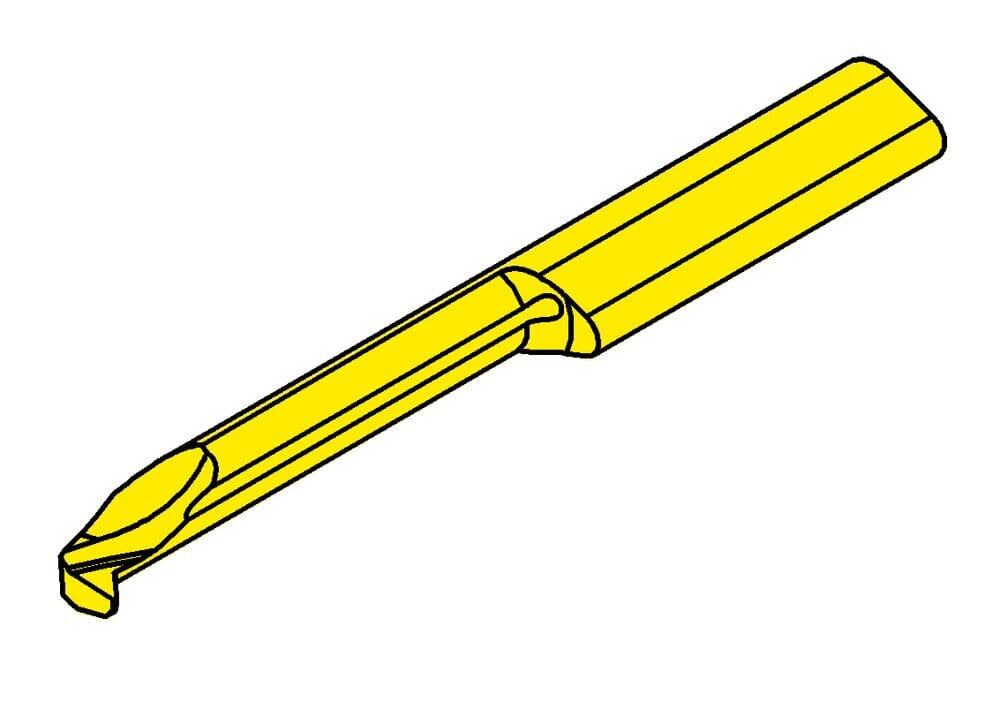

HORN Inserts R105.4733.5.6.2 TI25 for Turning
Note: Items designated with the 105225 HWS code have extended insert shanks. Inserts and holders with this code must be matched to a corresponding 105225 insert/holder.
tool-application
static
Setting range radial (f)
0.13 ˝
3.3 mm
Total length (l5)
2.165 ˝
55 mm
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
machining-direction-sap
right
Neck diameter (d)
0.146 ˝
3.7 mm
us-cutting
Yes
Top radius (r)
0.004 ˝
0.1 mm
Neck length (l2)
1.181 ˝
30 mm
Head size (a)
0.224 ˝
5.7 mm
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105225
| Downloads | |
|---|---|
| R105_4733_5_6_2_TI25-DXF.DXF | Download |
| R105_4733_5_6_2_TI25-STP.STP | Download |
| R105_4733_5_6_2_TI25-ISO.XML | Download |
| R105_4733_5_6_2_TI25-DIN.XML | Download |
| Download all files | |
