R105.4715.005.1.2 EG35
Recommended:
Material number R105471500512EG35

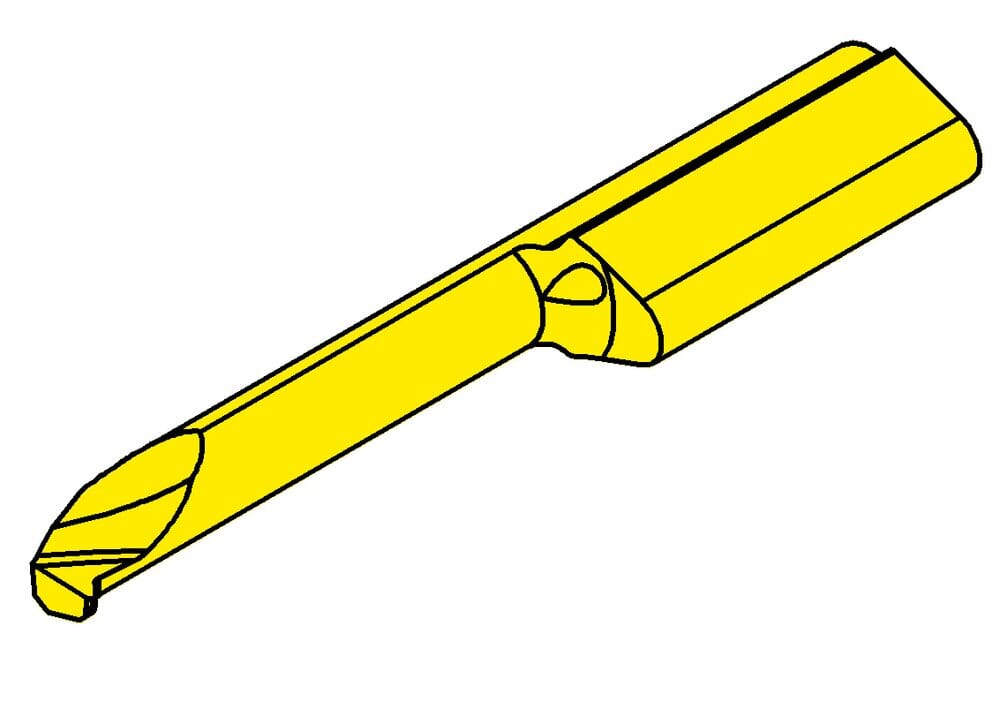

HORN Insert R105.4715.005.1.2 EG35 for Turning
Total length (l5)
0.984 ˝
25 mm
cutting
1
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.079 ˝
2 mm
Setting range radial (f)
0.059 ˝
1.5 mm
Neck diameter (d)
0.057 ˝
1.45 mm
Neck length (l2)
0.354 ˝
9 mm
Katalog_SSC
105123
Top radius (r)
0.002 ˝
0.05 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Head size (a)
0.075 ˝
1.9 mm
| Downloads | |
|---|---|
| R105_4715_005_1_2_EG35-STP.STP | Download |
| R105_4715_005_1_2_EG35-ISO.XML | Download |
| R105_4715_005_1_2_EG35-DIN.XML | Download |
| R105_4715_005_1_2_EG35-DXF.DXF | Download |
| Download all files | |
