R105.1840.7.7.2 EG35
Recommended:
Material number R1051840772EG35

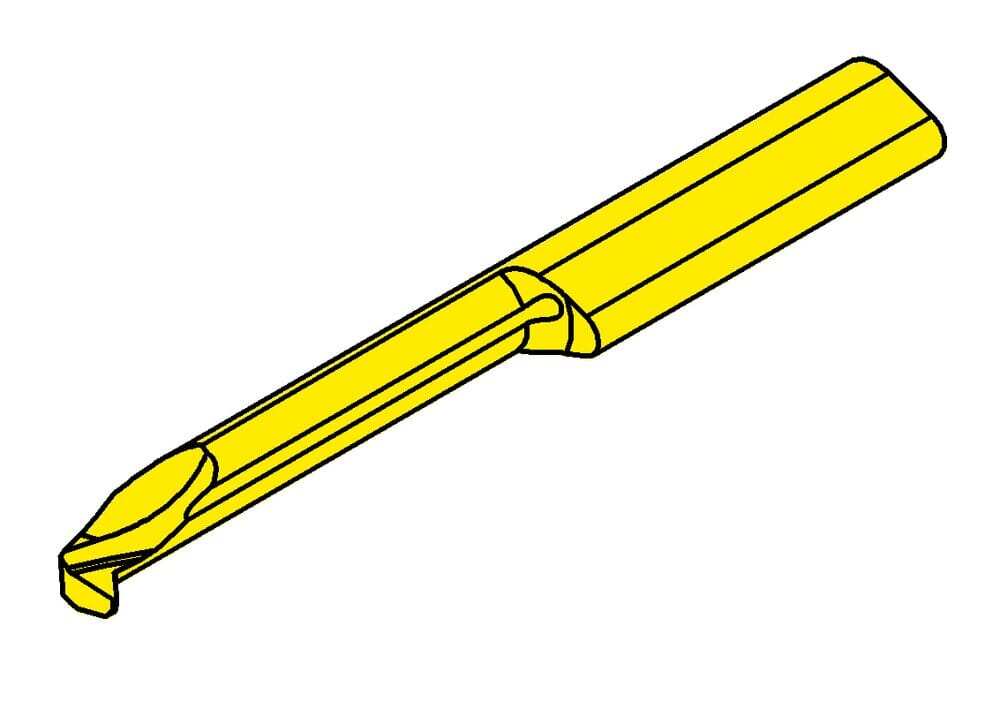

HORN Insert R105.1840.7.7.2 EG35 for Turning
Note: Items designated with the 105225 HWS code have extended insert shanks. Inserts and holders with this code must be matched to a corresponding 105225 insert/holder.
machining-direction-sap
right
Neck diameter (d)
0.213 ˝
5.4 mm
Setting range radial (f)
0.157 ˝
4 mm
Total length (l5)
2.559 ˝
65 mm
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
tool-application
static
us-cutting
Yes
Neck length (l2)
1.575 ˝
40 mm
Katalog_SSC
105225
Top radius (r)
0.004 ˝
0.1 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Head size (a)
0.252 ˝
6.4 mm
| Downloads | |
|---|---|
| R105_1840_7_7_2_EG35-ISO.XML | Download |
| R105_1840_7_7_2_EG35-DIN.XML | Download |
| R105_1840_7_7_2_EG35-DXF.DXF | Download |
| R105_1840_7_7_2_EG35-STP.STP | Download |
| Download all files | |
