R105.1823.5.5.2 TH35
Recommended:
Also suitable for:
Material number R1051823552TH35

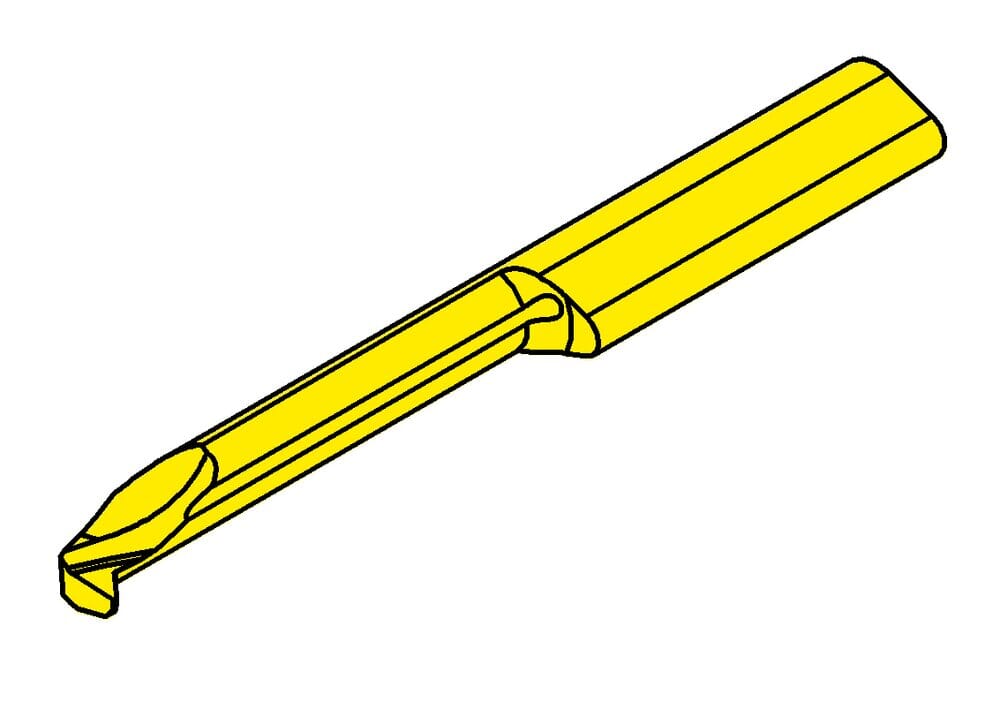

HORN Insert R105.1823.5.5.2 TH35 for Turning
Note: Items designated with the 105225 HWS code have extended insert shanks. Inserts and holders with this code must be matched to a corresponding 105225 insert/holder.
us-cutting
Yes
Katalog_SSC
105225
machining-direction-sap
right
Neck diameter (d)
0.165 ˝
4.2 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
2.165 ˝
55 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Head size (a)
0.185 ˝
4.7 mm
Neck length (l2)
1.181 ˝
30 mm
Top radius (r)
0.004 ˝
0.1 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Width of blank (b)
0.276 ˝
7 mm
tool-application
static
