R105.1823.4.5 TN35
Recommended:
Also suitable for:
Material number R105182345TN35

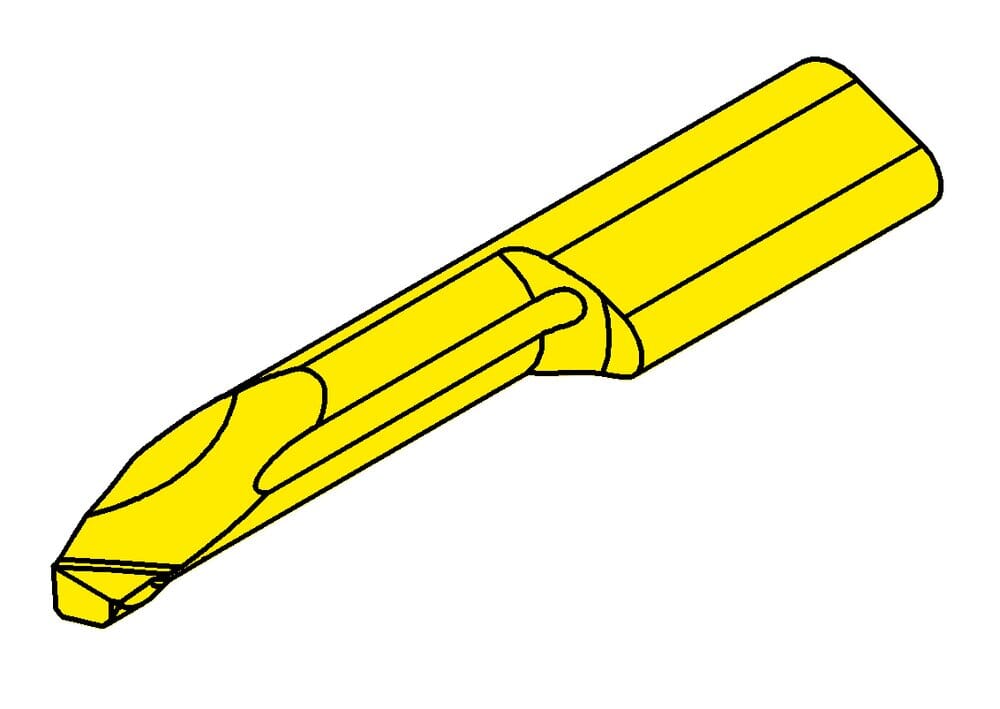

HORN Inserts R105.1823.4.5 TN35 for Turning
tool-application
static
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
1.575 ˝
40 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
machining-direction-sap
right
Neck diameter (d)
0.157 ˝
4 mm
cutting
1
us-cutting
Yes
Top radius (r)
0.008 ˝
0.2 mm
Neck length (l2)
0.984 ˝
25 mm
Head size (a)
0.185 ˝
4.7 mm
Maximum depth of groove (tmax)
0.02 ˝
0.5 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
| Downloads | |
|---|---|
| R105_1823_4_5_TN35-DXF.DXF | Download |
| R105_1823_4_5_TN35-STP.STP | Download |
| R105_1823_4_5_TN35-ISO.XML | Download |
| R105_1823_4_5_TN35-DIN.XML | Download |
| Download all files | |
