R105.1819.2.4 TH35
Recommended:
Also suitable for:
Material number R105181924TH35

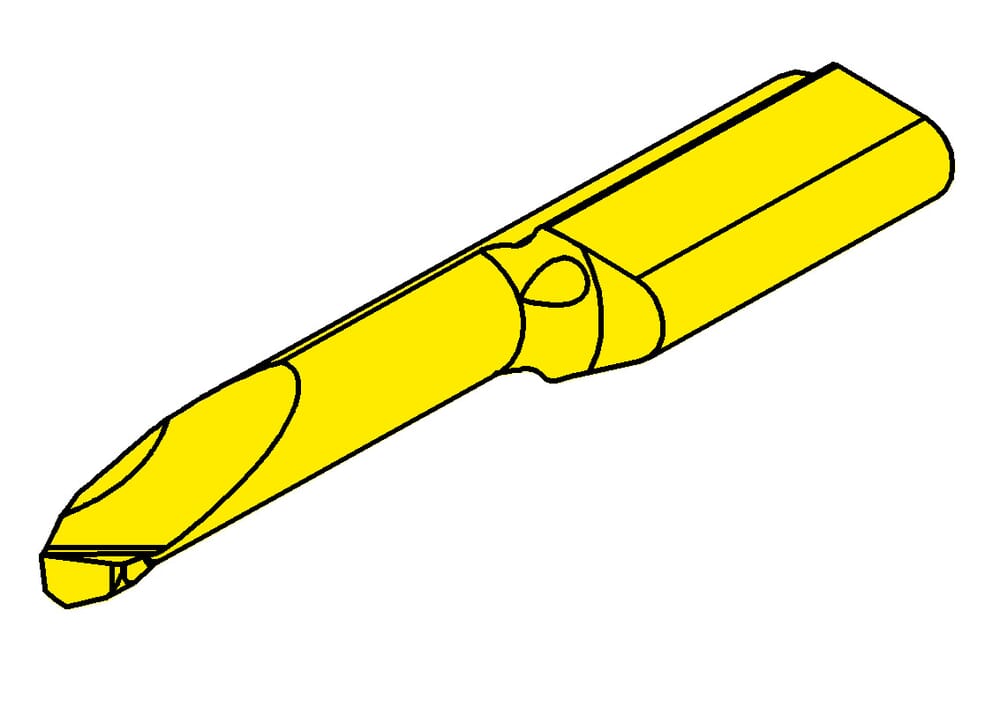

HORN Inserts R105.1819.2.4 TH35 for Turning
tool-application
static
Setting range radial (f)
0.075 ˝
1.9 mm
Total length (l5)
1.181 ˝
30 mm
Smallest bore diameter (Dmin)
0.157 ˝
4 mm
machining-direction-sap
right
Neck diameter (d)
0.114 ˝
2.9 mm
us-cutting
Yes
Top radius (r)
0.008 ˝
0.2 mm
Neck length (l2)
0.591 ˝
15 mm
Head size (a)
0.146 ˝
3.7 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Width of blank (b)
0.252 ˝
6.4 mm
Katalog_SSC
105124
| Downloads | |
|---|---|
| R105_1819_2_4_TH35-DXF.DXF | Download |
| R105_1819_2_4_TH35-ISO.XML | Download |
| R105_1819_2_4_TH35-DIN.XML | Download |
| R105_1819_2_4_TH35-STP.STP | Download |
| Download all files | |
