R105.1819.1.4 EG35
Recommended:
Material number R105181914EG35

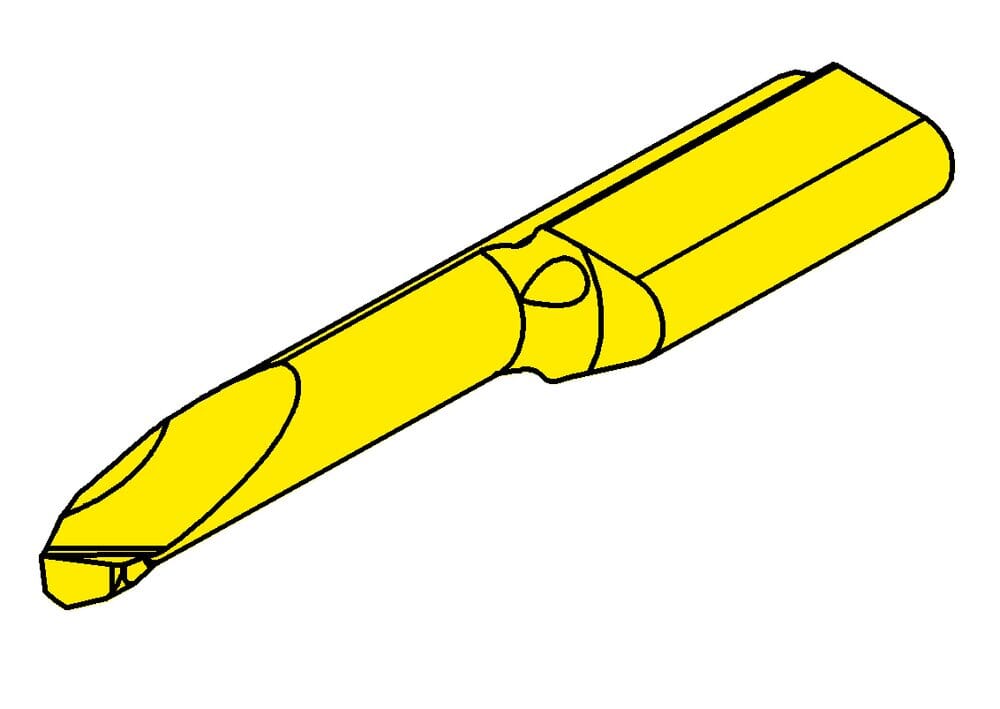

HORN insert R105.1819.1.4 EG35 for Turning
Smallest bore diameter (Dmin)
0.157 ˝
4 mm
us-cutting
Yes
tool-application
static
machining-direction-sap
right
Total length (l5)
0.984 ˝
25 mm
Setting range radial (f)
0.075 ˝
1.9 mm
Neck diameter (d)
0.114 ˝
2.9 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105124
Top radius (r)
0.008 ˝
0.2 mm
Width of blank (b)
0.252 ˝
6.4 mm
Maximum depth of groove (tmax)
0.012 ˝
0.3 mm
Head size (a)
0.146 ˝
3.7 mm
| Downloads | |
|---|---|
| R105_1819_1_4_EG35-DIN.XML | Download |
| R105_1819_1_4_EG35-DXF.DXF | Download |
| R105_1819_1_4_EG35-STP.STP | Download |
| R105_1819_1_4_EG35-ISO.XML | Download |
| Download all files | |
