R105.1813.01.2.3 TI25
Recommended:
Also suitable for:
Material number R10518130123TI25

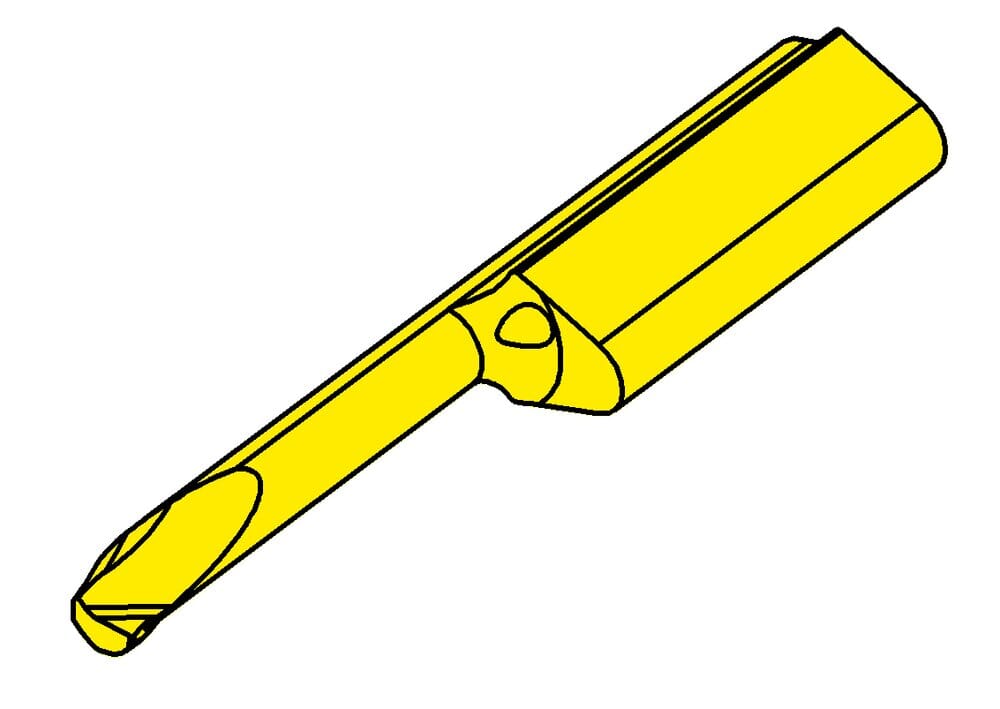

HORN Insert R105.1813.01.2.3 TI25 for Turning
Neck diameter (d)
0.091 ˝
2.3 mm
Katalog_SSC
105123
machining-direction-sap
right
us-cutting
Yes
Setting range radial (f)
0.051 ˝
1.3 mm
Total length (l5)
1.181 ˝
30 mm
Smallest bore diameter (Dmin)
0.118 ˝
3 mm
Head size (a)
0.102 ˝
2.6 mm
Neck length (l2)
0.591 ˝
15 mm
Top radius (r)
0.004 ˝
0.1 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Width of blank (b)
0.232 ˝
5.9 mm
tool-application
static
| Downloads | |
|---|---|
| R105_1813_01_2_3_TI25-DXF.DXF | Download |
| R105_1813_01_2_3_TI25-STP.STP | Download |
| R105_1813_01_2_3_TI25-ISO.XML | Download |
| R105_1813_01_2_3_TI25-DIN.XML | Download |
| Download all files | |
