R105.1813.01.1.3 TH35
Material number R10518130113TH35

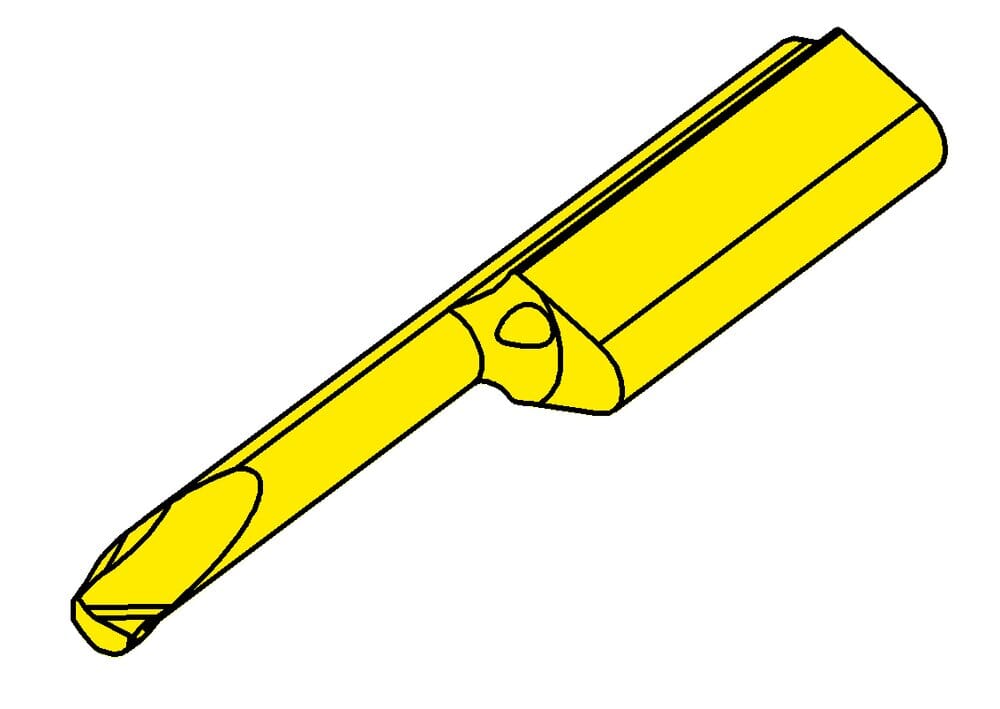

HORN Insert R105.1813.01.1.3 TH35 for Turning
Neck diameter (d)
0.091 ˝
2.3 mm
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.118 ˝
3 mm
Total length (l5)
0.984 ˝
25 mm
Setting range radial (f)
0.051 ˝
1.3 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105123
Top radius (r)
0.004 ˝
0.1 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Head size (a)
0.102 ˝
2.6 mm
