R105.0825.1.9 TI25
Recommended:
Also suitable for:
Material number R105082519TI25

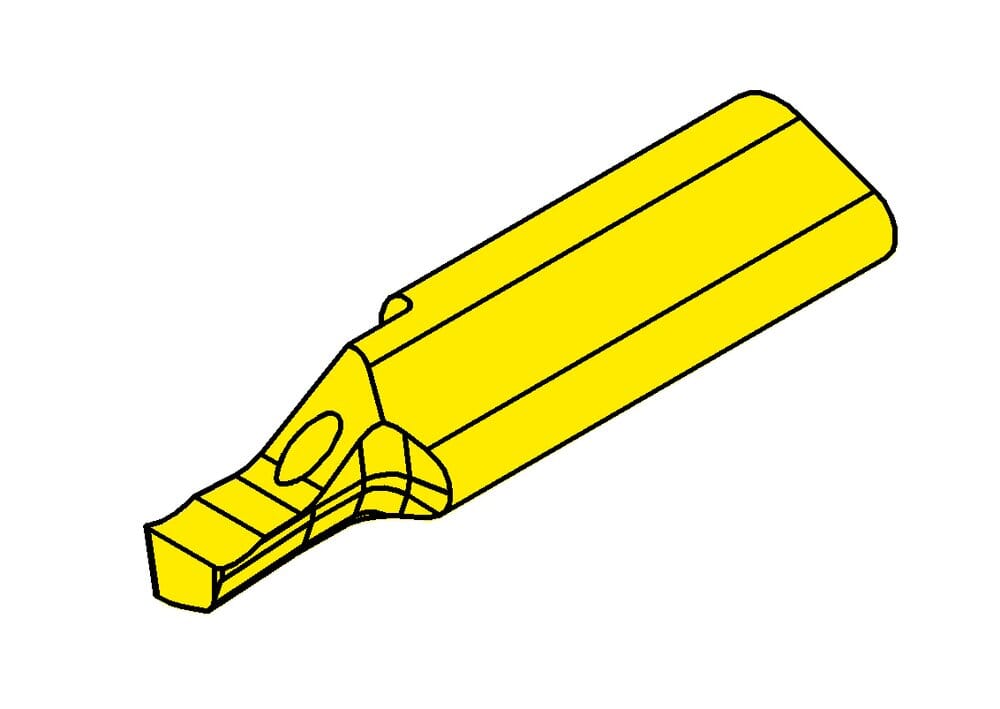

HORN Inserts R105.0825.1.9 TI25 for Turning
Total length (l5)
0.984 ˝
25 mm
us-cutting
Yes
cutting
1
tool-application
static
machining-direction-sap
right
Width of groove (mm) (w)
0.098 ˝
2.5 mm
Neck length (l2)
0.394 ˝
10 mm
Corner radius (r)
0.006 ˝
0.15 mm
Katalog_SSC
105125
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.197 ˝
5 mm
Adjustment dimension cutting center (f)
0.016 ˝
0.4 mm
| Downloads | |
|---|---|
| R105_0825_1_9_TI25-ISO.XML | Download |
| R105_0825_1_9_TI25-DIN.XML | Download |
| R105_0825_1_9_TI25-DXF.DXF | Download |
| R105_0825_1_9_TI25-STP.STP | Download |
| Download all files | |
