R105.0825.1.9 EG35
Material number R105082519EG35

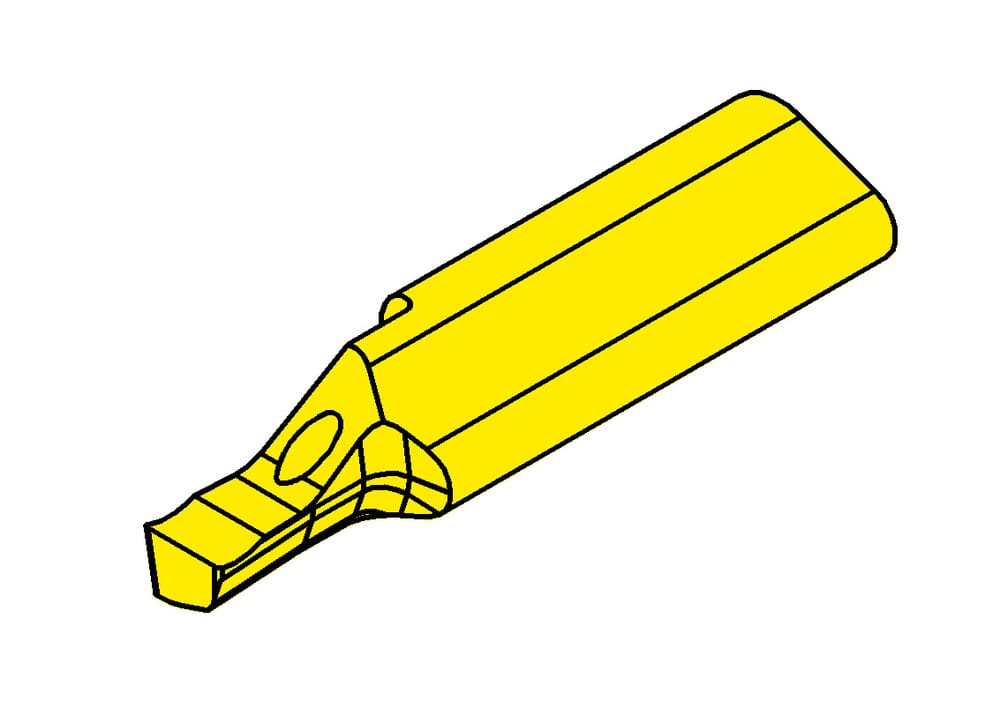

HORN Insert R105.0825.1.9 EG35 for Turning
tool-application
static
machining-direction-sap
right
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.098 ˝
2.5 mm
Corner radius (r)
0.006 ˝
0.15 mm
Katalog_SSC
105125
Neck length (l2)
0.394 ˝
10 mm
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.197 ˝
5 mm
Adjustment dimension cutting center (f)
0.016 ˝
0.4 mm
| Downloads | |
|---|---|
| R105082519_20230114_025019511.STP | Download |
| R105082519.DXF | Download |
| Download all files | |
