R105.0825.1.8 EG35
Recommended:
Material number R105082518EG35

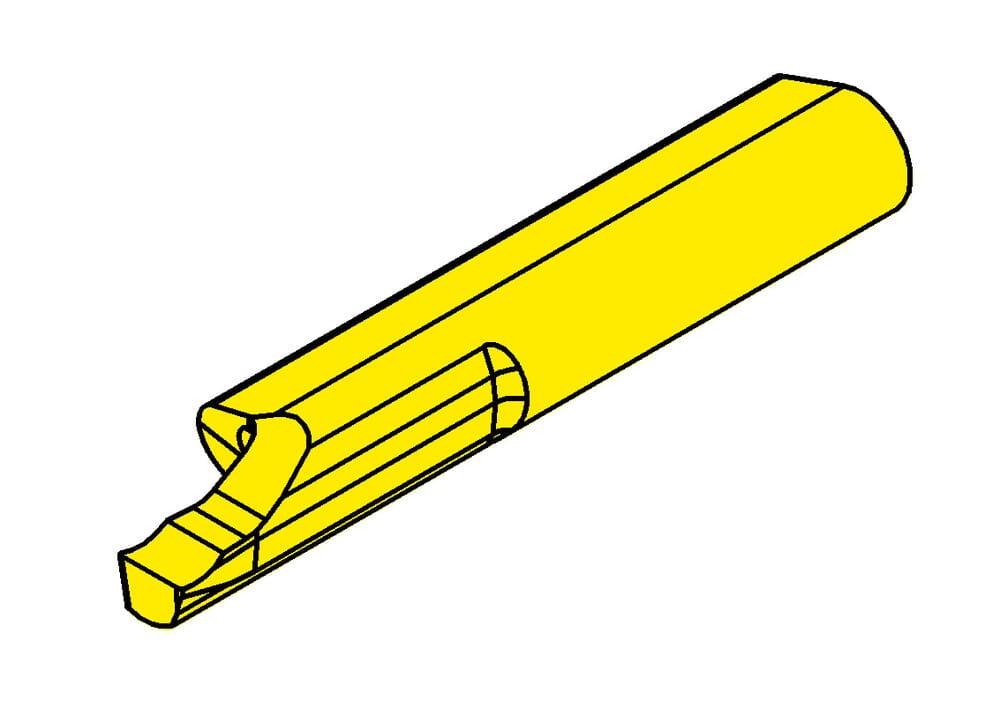

HORN Insert R105.0825.1.8 EG35 for Turning
Width of groove (w)
0.098 ˝
2.5 mm
tool-application
static
machining-direction-sap
right
Total length (l5)
0.984 ˝
25 mm
Corner radius (r)
0.006 ˝
0.15 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105125
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.197 ˝
5 mm
Adjustment dimension cutting center (f)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| R105_0825_1_8_EG35-DXF.DXF | Download |
| R105_0825_1_8_EG35-STP.STP | Download |
| R105_0825_1_8_EG35-ISO.XML | Download |
| R105_0825_1_8_EG35-DIN.XML | Download |
| Download all files | |
