R105.0815.4.7 TN35
Recommended:
Also suitable for:
Material number R105081547TN35

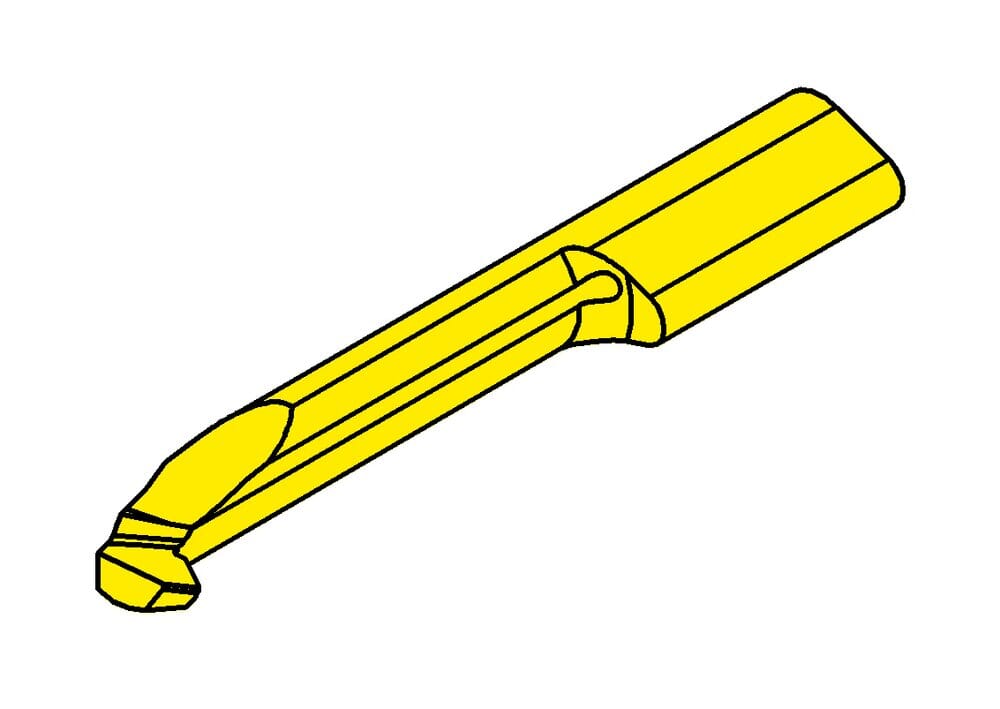

HORN insert R105.0815.4.7 TN35 for Gewinden
machining-direction-sap
right
Setting length (E)
0.03 ˝
0.75 mm
Smallest bore diameter (Dmin)
0.276 ˝
7 mm
Pitch (P)
0.059 ˝
1.5 mm
Maximum pitch (Pmax)
0.059 ˝
1.5 mm
Cutting insert width (a)
0.252 ˝
6.4 mm
tool-application
static
us-cutting
Yes
Neck diameter (d)
0.146 ˝
3.7 mm
Neck length (l2)
0.984 ˝
25 mm
Cutting insert total length (l5)
1.575 ˝
40 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
Setting range radial (f)
0.157 ˝
4 mm
| Downloads | |
|---|---|
| R105_0815_4_7_TN35-DIN.XML | Download |
| R105_0815_4_7_TN35-DXF.DXF | Download |
| R105_0815_4_7_TN35-STP.STP | Download |
| R105_0815_4_7_TN35-ISO.XML | Download |
| Download all files | |
