R105.0815.3.7 TN35
Material number R105081537TN35

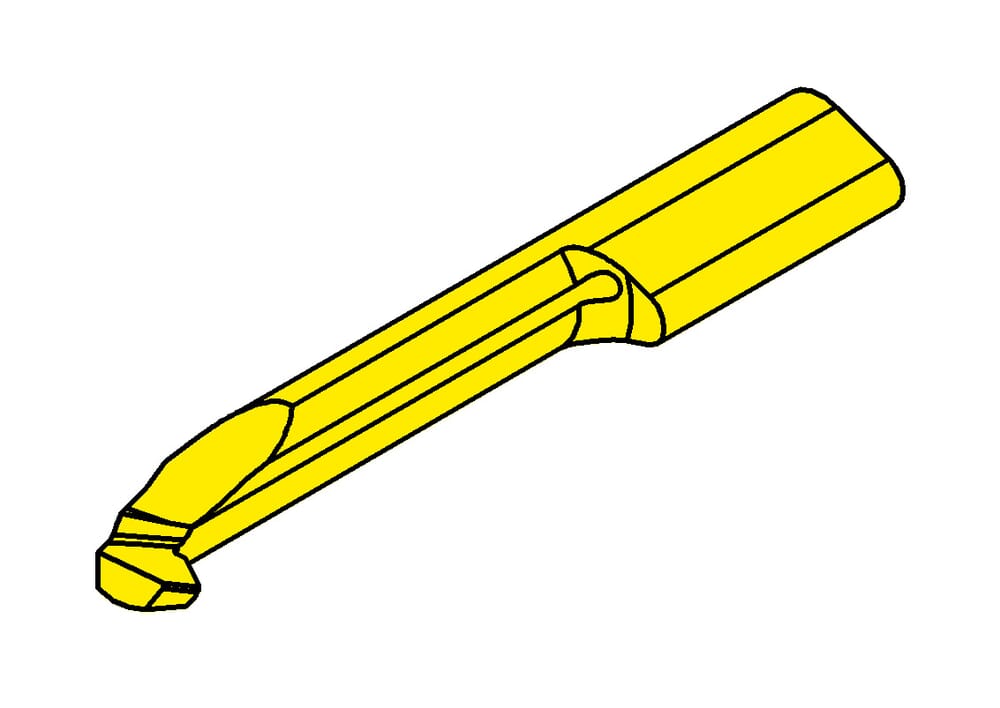

HORN insert R105.0815.3.7 TN35 for Gewinden
Pitch (P)
0.059 ˝
1.5 mm
tool-application
static
machining-direction-sap
right
Maximum pitch (Pmax)
0.059 ˝
1.5 mm
Smallest bore diameter (Dmin)
0.276 ˝
7 mm
Setting length (E)
0.03 ˝
0.75 mm
Cutting insert width (a)
0.252 ˝
6.4 mm
Setting range radial (f)
0.157 ˝
4 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Cutting insert total length (l5)
1.378 ˝
35 mm
| Downloads | |
|---|---|
| R105081537_20230113_222546857.STP | Download |
| R105081537.DXF | Download |
| Download all files | |
