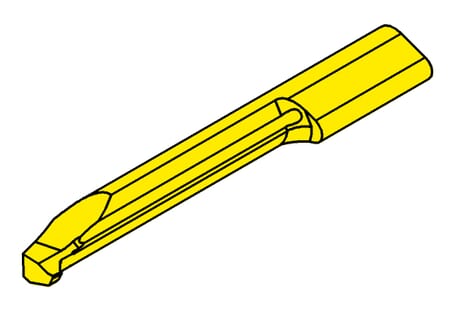

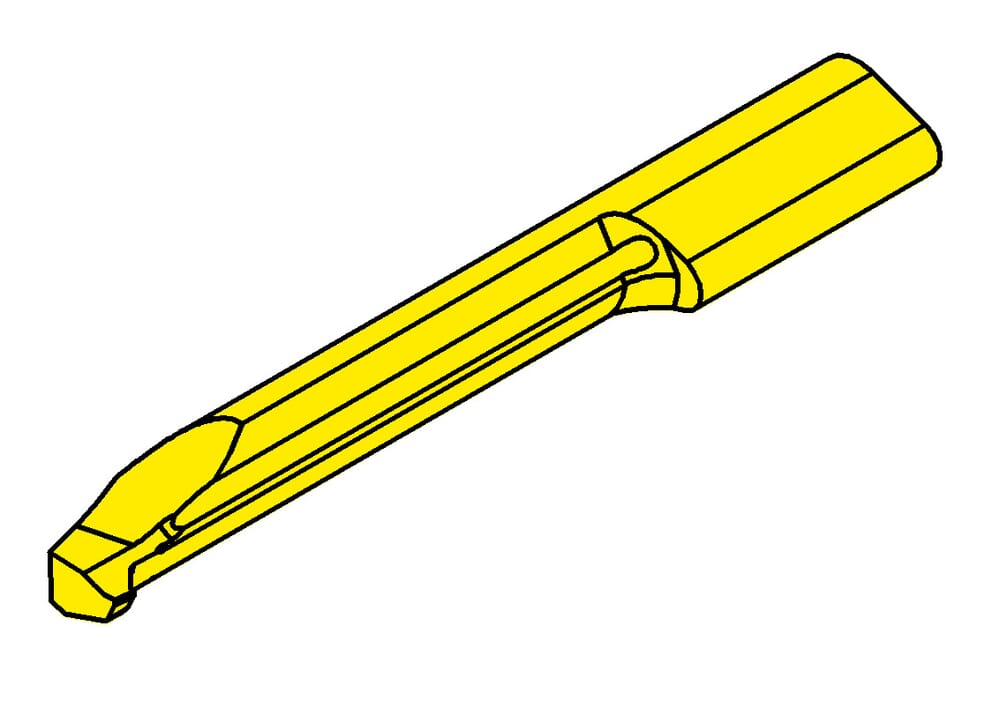

HORN Insert R105.0810.7.6 TN35 for Turning
Width of groove (mm) (w)
0.039 ˝
1 mm
Neck diameter (d)
0.165 ˝
4.2 mm
Setting range radial (f)
0.122 ˝
3.1 mm
Total length (l5)
2.165 ˝
55 mm
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
machining-direction-sap
right
tool-application
static
Depth of pre-groove (t1)
0.008 ˝
0.2 mm
Neck length (l2)
1.575 ˝
40 mm
Head size (a)
0.217 ˝
5.5 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
