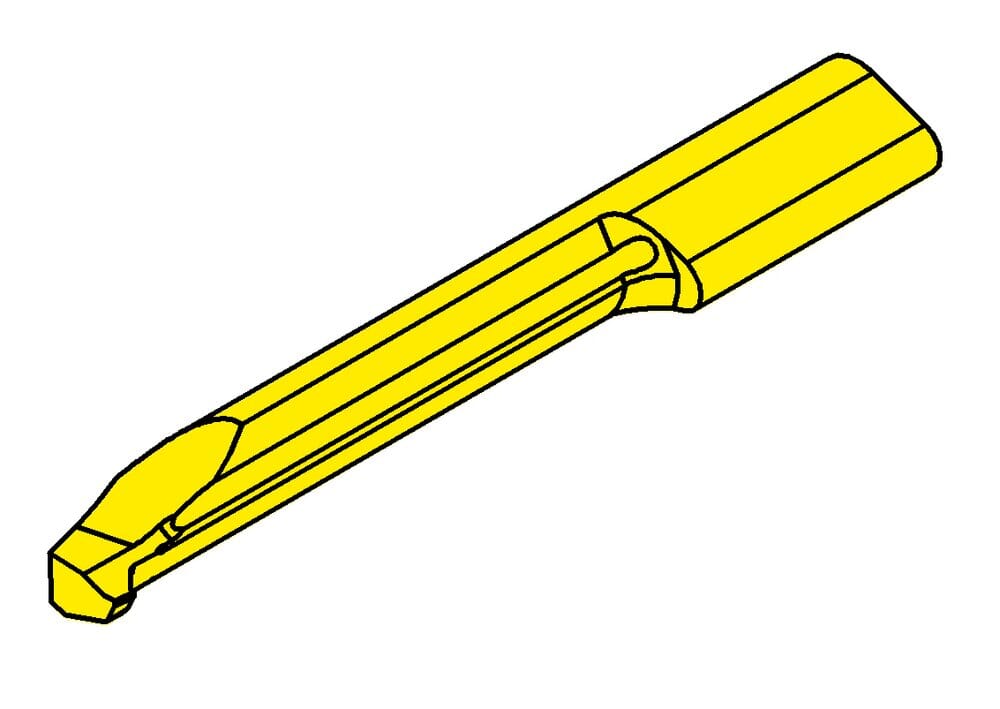

HORN Insert R105.0810.5.5 TN35 for Turning
machining-direction-sap
right
Neck diameter (d)
0.138 ˝
3.5 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
1.772 ˝
45 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
tool-application
static
cutting
1
us-cutting
Yes
Depth of pre-groove (t1)
0.008 ˝
0.2 mm
Neck length (l2)
1.181 ˝
30 mm
Head size (a)
0.185 ˝
4.7 mm
Maximum depth of groove (tmax)
0.028 ˝
0.7 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
