R105.0510.2.5 IG35
Recommended:
Material number R105051025IG35

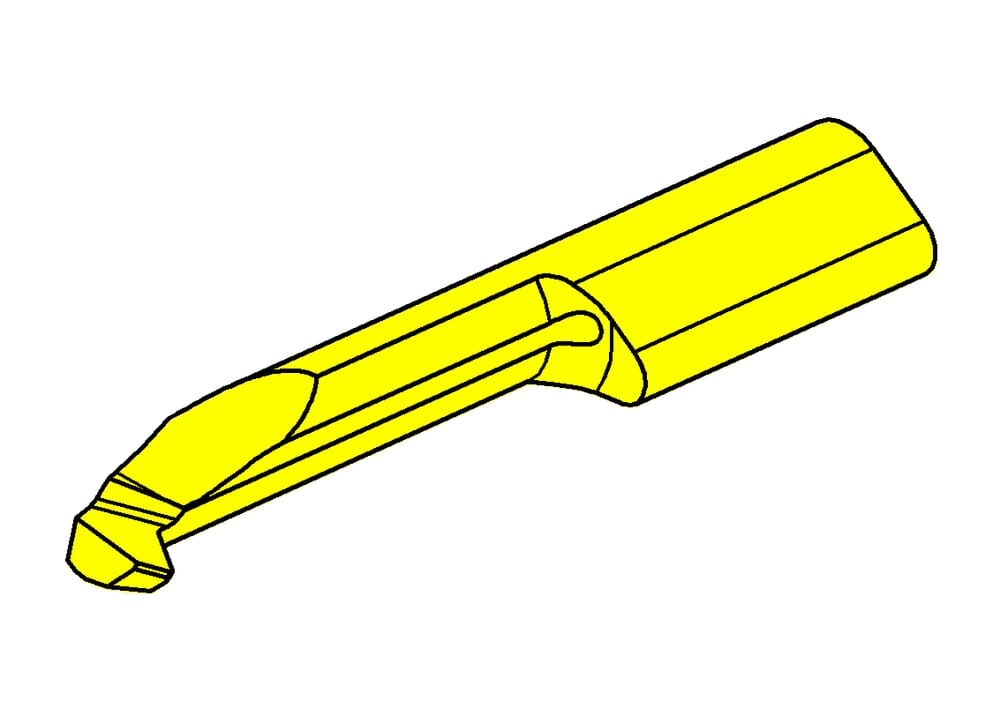

HORN Inserts R105.0510.2.5 IG35 for Gewinden
Smallest bore diameter (Dmin)
0.189 ˝
4.8 mm
Setting length (E)
0.022 ˝
0.55 mm
Pitch (P)
0.039 ˝
1 mm
Maximum pitch (Pmax)
0.039 ˝
1 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Setting range radial (f)
0.083 ˝
2.1 mm
Cutting insert width (a)
0.177 ˝
4.5 mm
us-cutting
Yes
Width of blank (b)
0.276 ˝
7 mm
Neck length (l2)
0.591 ˝
15 mm
Cutting insert total length (l5)
1.181 ˝
30 mm
tool-application
static
Katalog_SSC
105125
machining-direction-sap
right
