R105.0200.2.6 TN35
Recommended:
Also suitable for:
Material number R105020026TN35

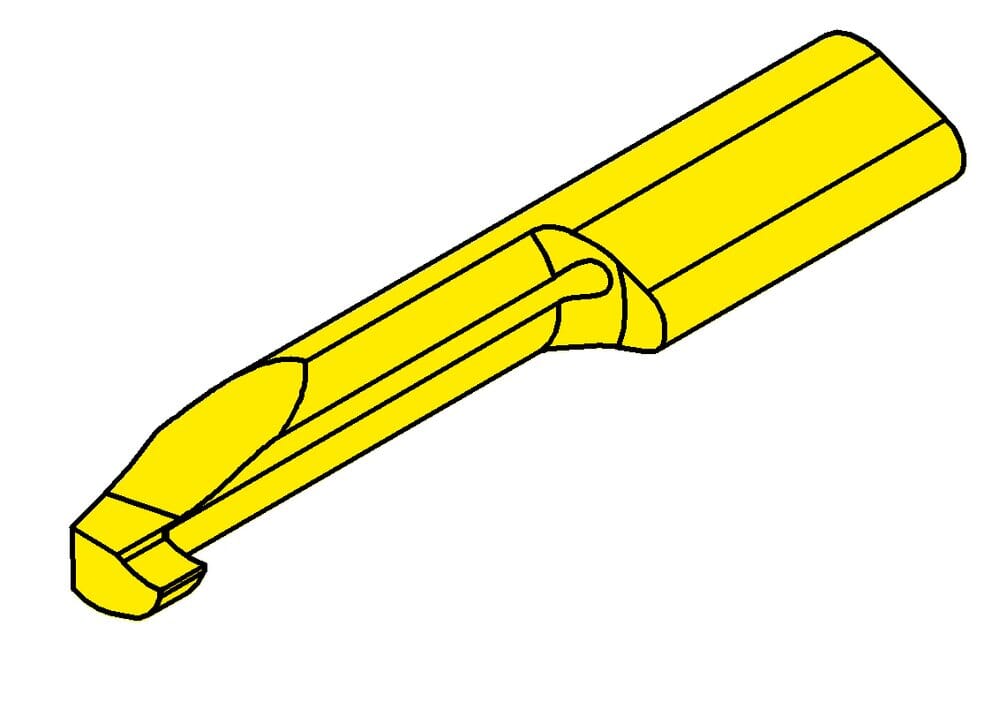

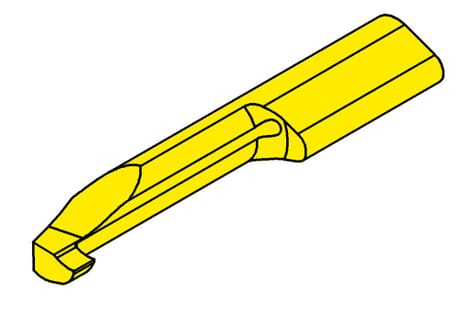

HORN Inserts R105.0200.2.6 TN35 for Turning
tool-application
static
Setting range radial (f)
0.13 ˝
3.3 mm
Total length (l5)
1.181 ˝
30 mm
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
machining-direction-sap
right
Neck diameter (d)
0.146 ˝
3.7 mm
us-cutting
Yes
Neck length (l2)
0.591 ˝
15 mm
Head size (a)
0.224 ˝
5.7 mm
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
Width of groove (w)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| R105_0200_2_6_TN35-DXF.DXF | Download |
| R105_0200_2_6_TN35-STP.STP | Download |
| R105_0200_2_6_TN35-ISO.XML | Download |
| R105_0200_2_6_TN35-DIN.XML | Download |
| Download all files | |
