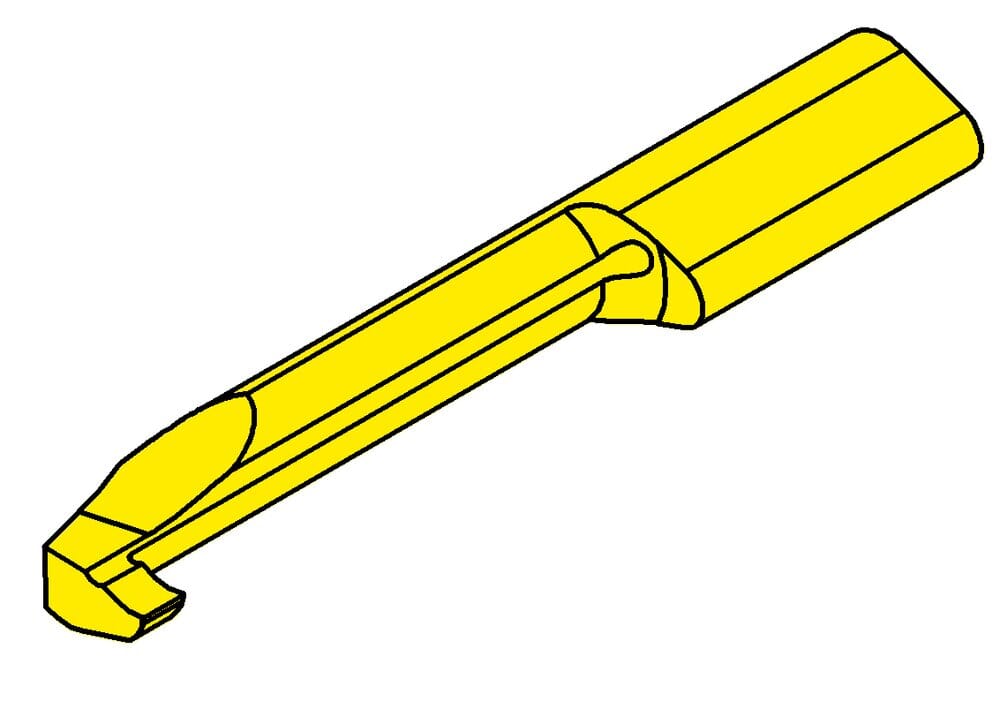

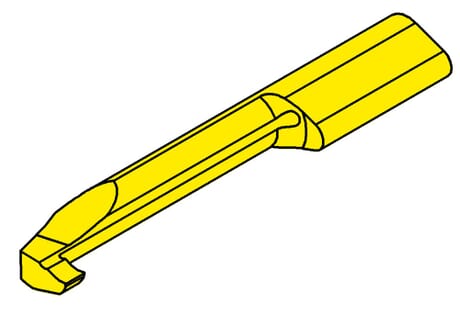

HORN insert R105.0150.5.7 TH35 for Turning
tool-application
static
Setting range radial (f)
0.157 ˝
4 mm
Total length (l5)
1.772 ˝
45 mm
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
machining-direction-sap
right
Neck diameter (d)
0.146 ˝
3.7 mm
us-cutting
Yes
Neck length (l2)
1.181 ˝
30 mm
Head size (a)
0.252 ˝
6.4 mm
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
Width of groove (w)
0.059 ˝
1.5 mm
