R105.0150.5.5 TN35
Recommended:
Also suitable for:
Material number R105015055TN35

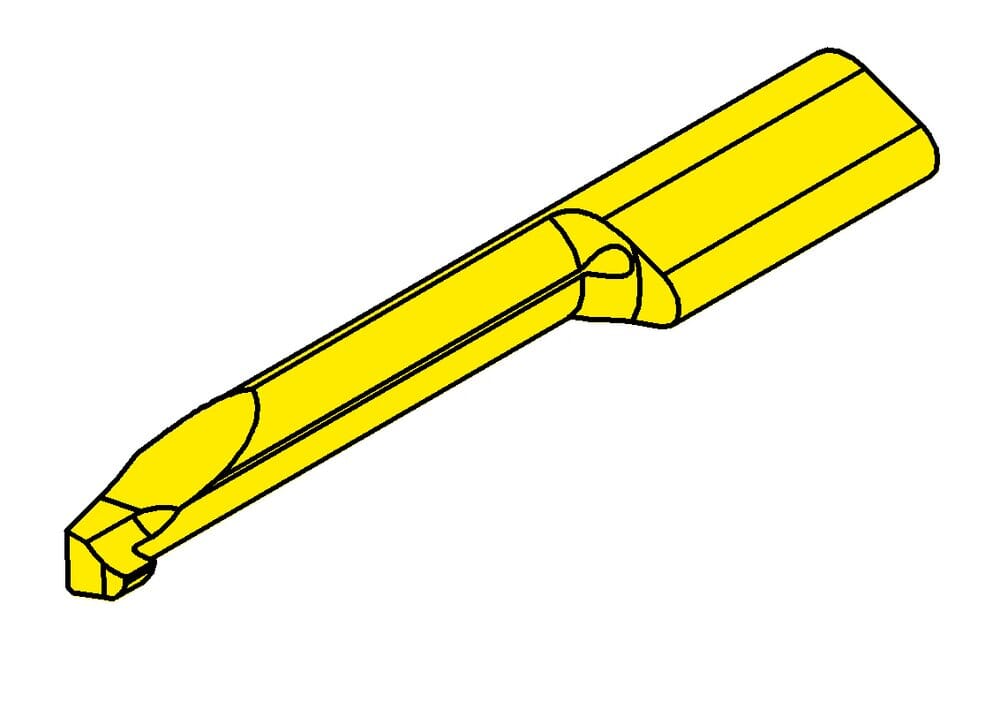

HORN Inserts R105.0150.5.5 TN35 for Turning
Setting range radial (f)
0.091 ˝
2.3 mm
us-cutting
Yes
Width of groove (w)
0.059 ˝
1.5 mm
Neck diameter (d)
0.138 ˝
3.5 mm
machining-direction-sap
right
Total length (l5)
1.772 ˝
45 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Neck length (l2)
1.181 ˝
30 mm
Head size (a)
0.185 ˝
4.7 mm
Width of blank (b)
0.276 ˝
7 mm
tool-application
static
Katalog_SSC
105125
| Downloads | |
|---|---|
| R105_0150_5_5_TN35-DIN.XML | Download |
| R105_0150_5_5_TN35-DXF.DXF | Download |
| R105_0150_5_5_TN35-STP.STP | Download |
| R105_0150_5_5_TN35-ISO.XML | Download |
| Download all files | |
