R105.0050.1.2 TI25
Recommended:
Also suitable for:
Material number R105005012TI25

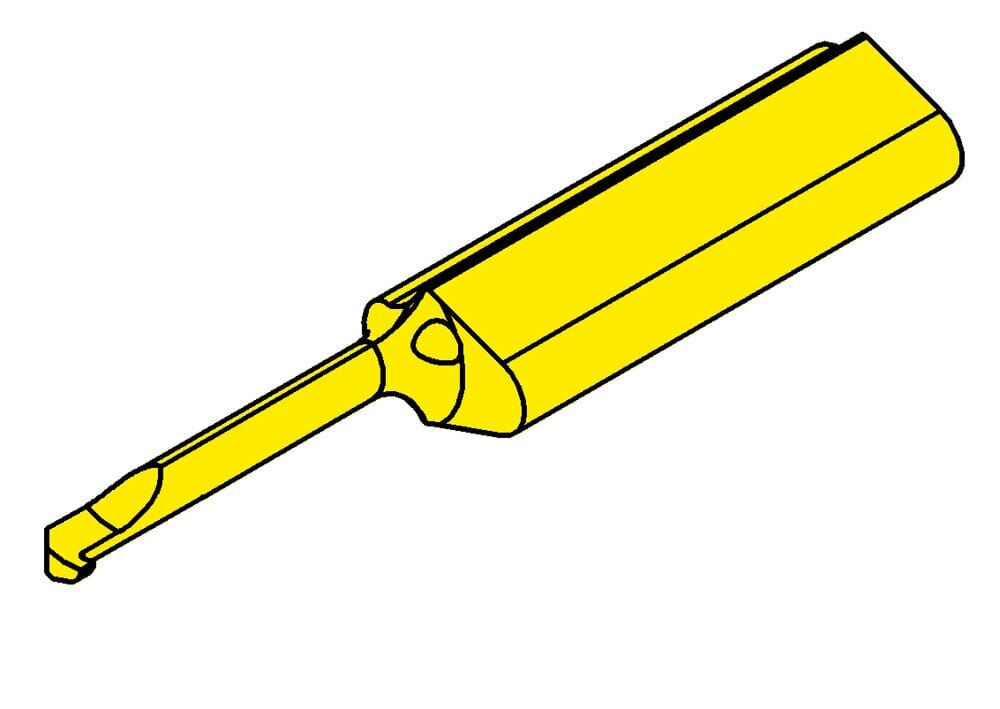

HORN Insert R105.0050.1.2 TI25 for Turning
tool-application
static
Setting range radial (f)
0.055 ˝
1.4 mm
Total length (l5)
0.984 ˝
25 mm
Smallest bore diameter (Dmin)
0.079 ˝
2 mm
machining-direction-sap
right
Neck diameter (d)
0.047 ˝
1.2 mm
cutting
1
us-cutting
Yes
Neck length (l2)
0.354 ˝
9 mm
Head size (a)
0.071 ˝
1.8 mm
Maximum depth of groove (tmax)
0.016 ˝
0.4 mm
Width of blank (b)
0.232 ˝
5.9 mm
Katalog_SSC
105123
Width of groove (w)
0.02 ˝
0.5 mm
| Downloads | |
|---|---|
| R105_0050_1_2_TI25-DXF.DXF | Download |
| R105_0050_1_2_TI25-STP.STP | Download |
| R105_0050_1_2_TI25-ISO.XML | Download |
| R105_0050_1_2_TI25-DIN.XML | Download |
| Download all files | |
