R105.0050.0.2 TI25
Recommended:
Also suitable for:
Material number R105005002TI25

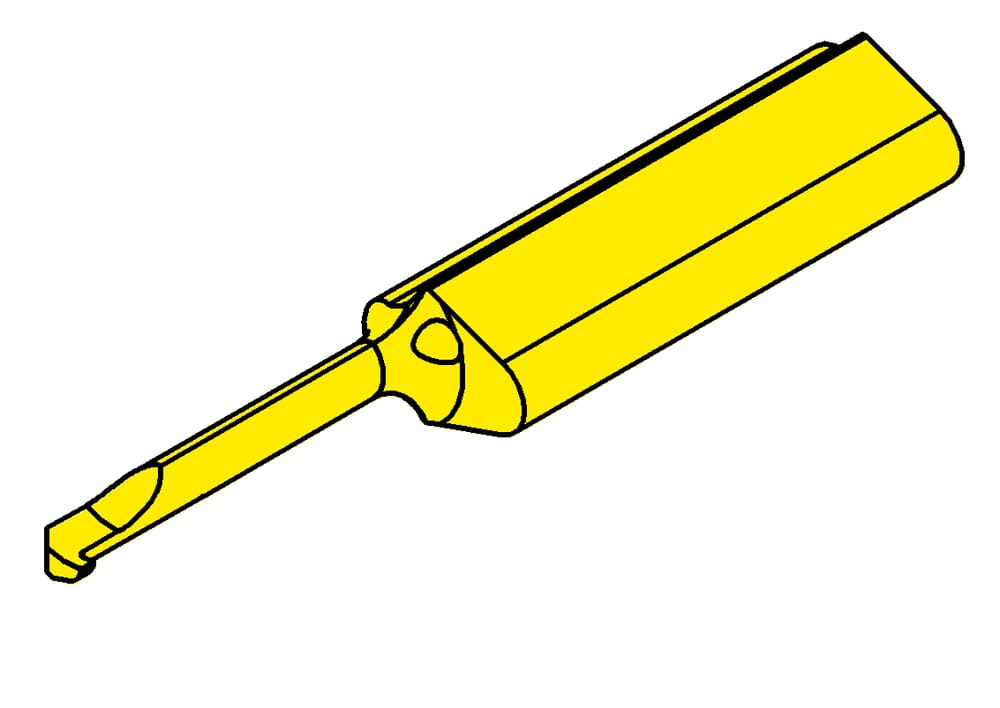

HORN Insert R105.0050.0.2 TI25 for Turning
Setting range radial (f)
0.055 ˝
1.4 mm
us-cutting
Yes
Width of groove (w)
0.02 ˝
0.5 mm
Neck diameter (d)
0.047 ˝
1.2 mm
machining-direction-sap
right
Total length (l5)
0.984 ˝
25 mm
Smallest bore diameter (Dmin)
0.079 ˝
2 mm
Maximum depth of groove (tmax)
0.016 ˝
0.4 mm
Neck length (l2)
0.236 ˝
6 mm
Head size (a)
0.071 ˝
1.8 mm
Width of blank (b)
0.232 ˝
5.9 mm
tool-application
static
Katalog_SSC
105123
| Downloads | |
|---|---|
| R105_0050_0_2_TI25-DXF.DXF | Download |
| R105_0050_0_2_TI25-STP.STP | Download |
| R105_0050_0_2_TI25-ISO.XML | Download |
| R105_0050_0_2_TI25-DIN.XML | Download |
| Download all files | |
