R105.0005.3.5 IG35
Recommended:
Also suitable for:
Material number R105000535IG35

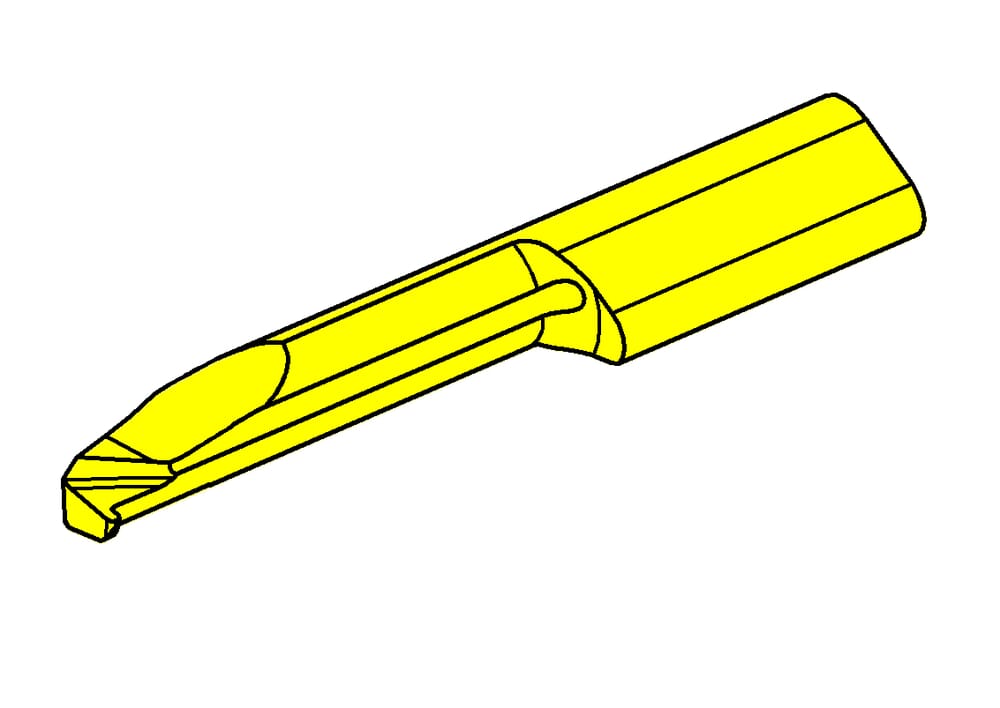

HORN Insert R105.0005.3.5 IG35 for Turning
Total length (l5)
1.378 ˝
35 mm
Width of groove (w)
0.039 ˝
1 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Katalog_SSC
105125
machining-direction-sap
right
us-cutting
Yes
Head size (a)
0.185 ˝
4.7 mm
Neck length (l2)
0.787 ˝
20 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Full radius (r)
0.02 ˝
0.5 mm
Width of blank (b)
0.276 ˝
7 mm
tool-application
static
| Downloads | |
|---|---|
| R105000535_20210626_022012019.DXF | Download |
| R105000535_20230113_230916173.STP | Download |
| Download all files | |
