R105.0150.1.5 MG12
Material number R105015015MG12

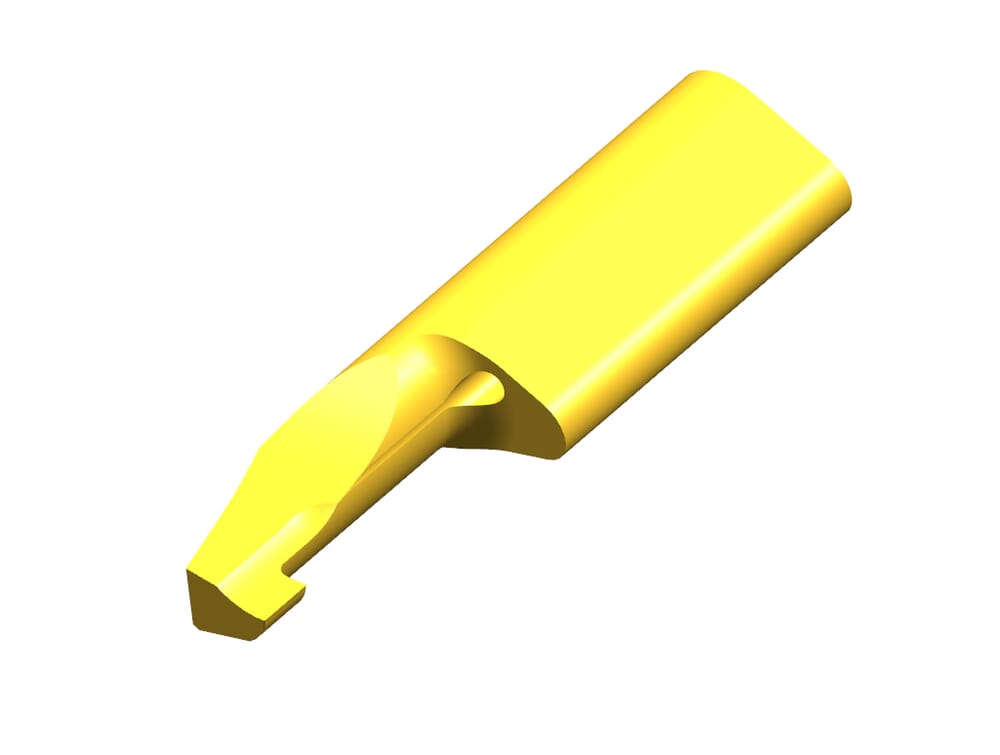

HORN Inserts R105.0150.1.5 MG12 for Turning
Setting range radial (f)
0.091 ˝
2.3 mm
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Total length (l5)
0.984 ˝
25 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Head size (a)
0.185 ˝
4.7 mm
| Downloads | |
|---|---|
| R105015015_20210630_134526118.STP | Download |
| R105015015.DXF | Download |
| Download all files | |
