L111.0510.02 TN35

Recommended:

Also suitable for:

Material number L111051002TN35

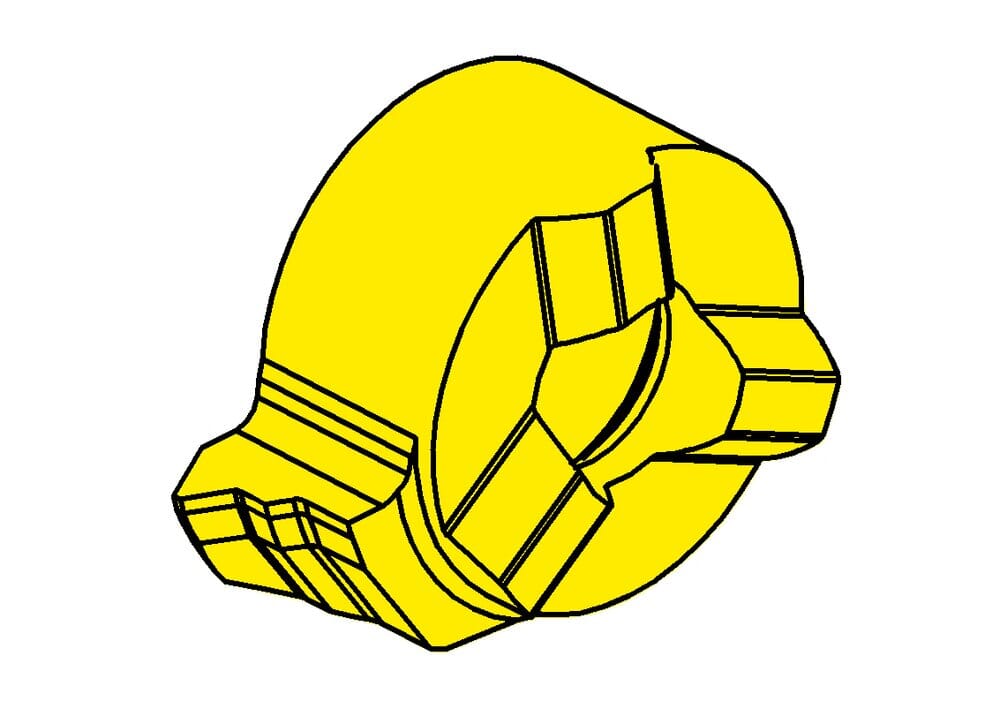

HORN Inserts L111.0510.02 TN35 for Gewinden

Cutting insert height, Cutting insert thickness (s)

0.163 ˝

4.15 mm

tool-application

static

machining-direction-sap

left

Pitch (P)

0.039 ˝

1 mm

Smallest bore diameter (Dmin)

0.433 ˝

11 mm

Setting length (E)

0.13 ˝

3.3 mm

Tooth diameter, head diameter (d)

0.315 ˝

8 mm

Cutting insert width (a)

0.421 ˝

10.7 mm

Setting range radial (f)

0.264 ˝

6.7 mm

Katalog_SSC

111080L
