L105.0100.2.7 TH35
insert
Material number L105010027TH35

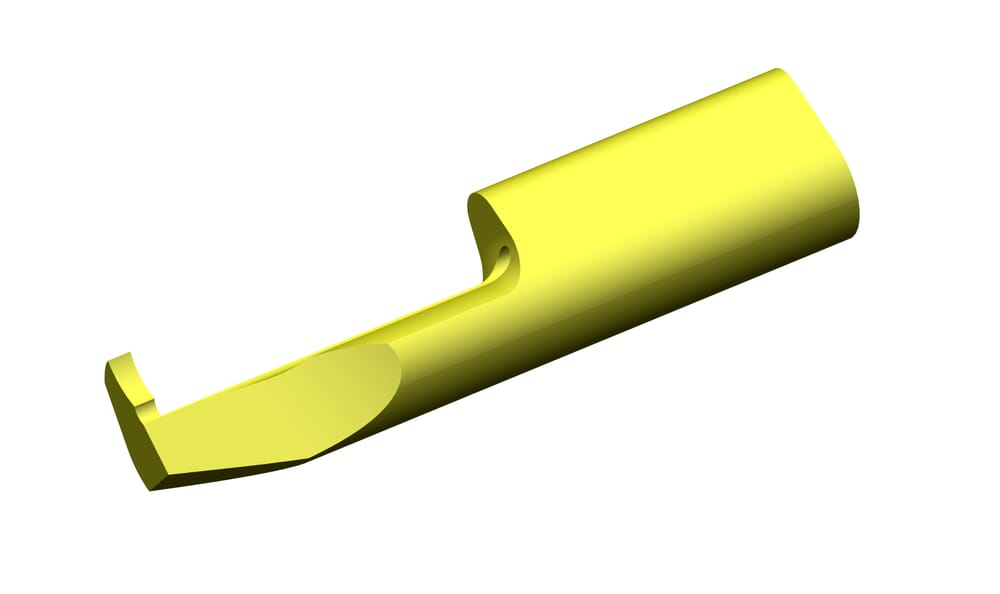

HORN insert L105.0100.2.7 TH35 for Turning
ISO_SSC
HORN105125$95N$$$$$
Smallest bore diameter (Dmin)
0.268
˝
6.8
mm
Total length (l5)
1.181
˝
30
mm
Setting range radial (f)
0.157
˝
4
mm
Neck diameter (d)
0.146
˝
3.7
mm
Width of groove (w)
0.039
˝
1
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
Width of blank (b)
0.276
˝
7
mm
Maximum depth of groove (tmax)
0.098
˝
2.5
mm
Head size (a)
0.252
˝
6.4
mm
Neck length (l2)
0.591
˝
15
mm
| Downloads | |
|---|---|
| L105010027_20230112_212503149.STP | Download |
| L105010027_20210625_224222664.DXF | Download |
| Download all files | |
