L105.0100.4.5 TH35
Recommended:
Also suitable for:
Material number L105010045TH35

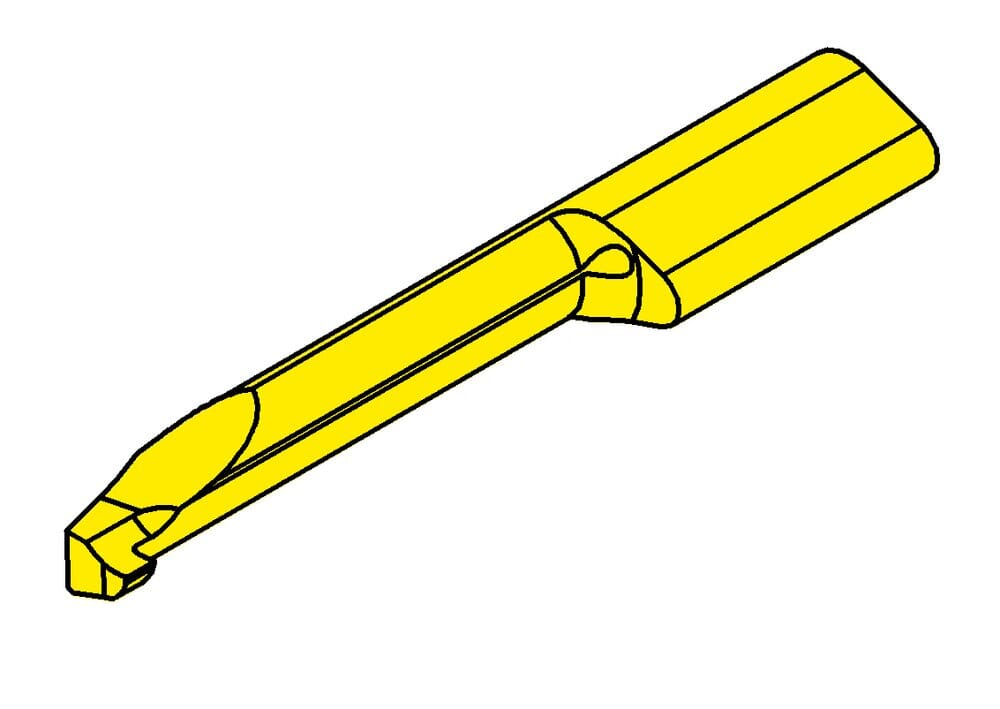

HORN Inserts L105.0100.4.5 TH35 for Turning
tool-application
static
Setting range radial (f)
0.091 ˝
2.3 mm
Total length (l5)
1.575 ˝
40 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
machining-direction-sap
left
Neck diameter (d)
0.138 ˝
3.5 mm
cutting
1
us-cutting
Yes
Neck length (l2)
0.984 ˝
25 mm
Head size (a)
0.185 ˝
4.7 mm
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Width of blank (b)
0.276 ˝
7 mm
Katalog_SSC
105125
Width of groove (w)
0.039 ˝
1 mm
| Downloads | |
|---|---|
| L105_0100_4_5_TH35-ISO.XML | Download |
| L105_0100_4_5_TH35-DIN.XML | Download |
| L105_0100_4_5_TH35-DXF.DXF | Download |
| L105_0100_4_5_TH35-STP.STP | Download |
| Download all files | |
