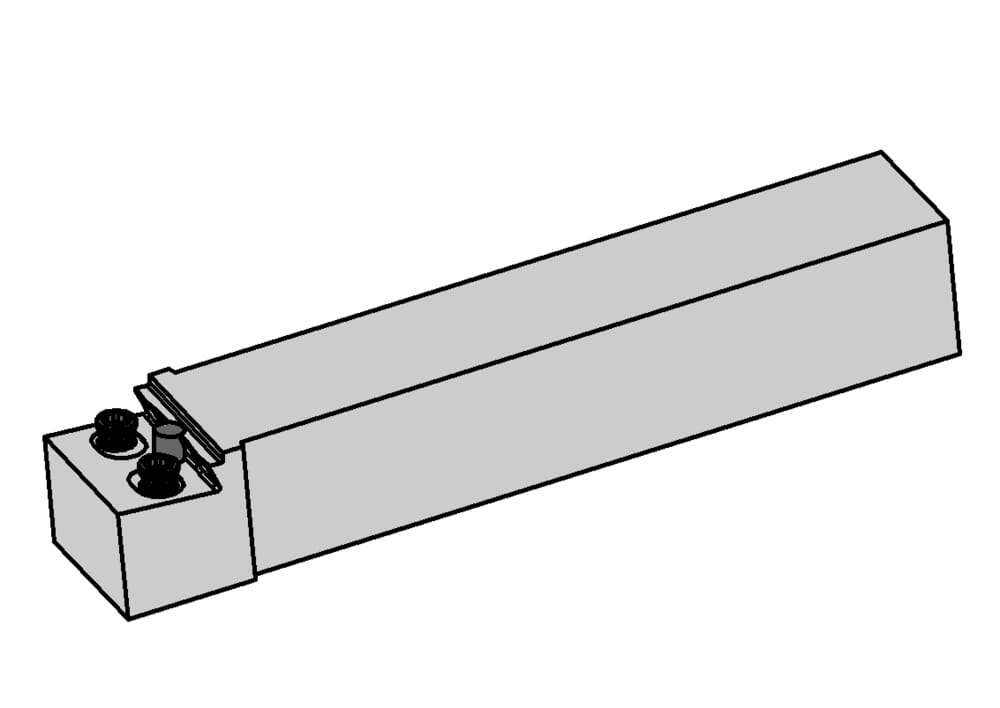

H117252532_PICTO.TIF

HU117.1000.32

AUSSEN_EINSTECHEN.EPS

Material number HU117100032

HORN Toolholders HU117.1000.32 for Turning

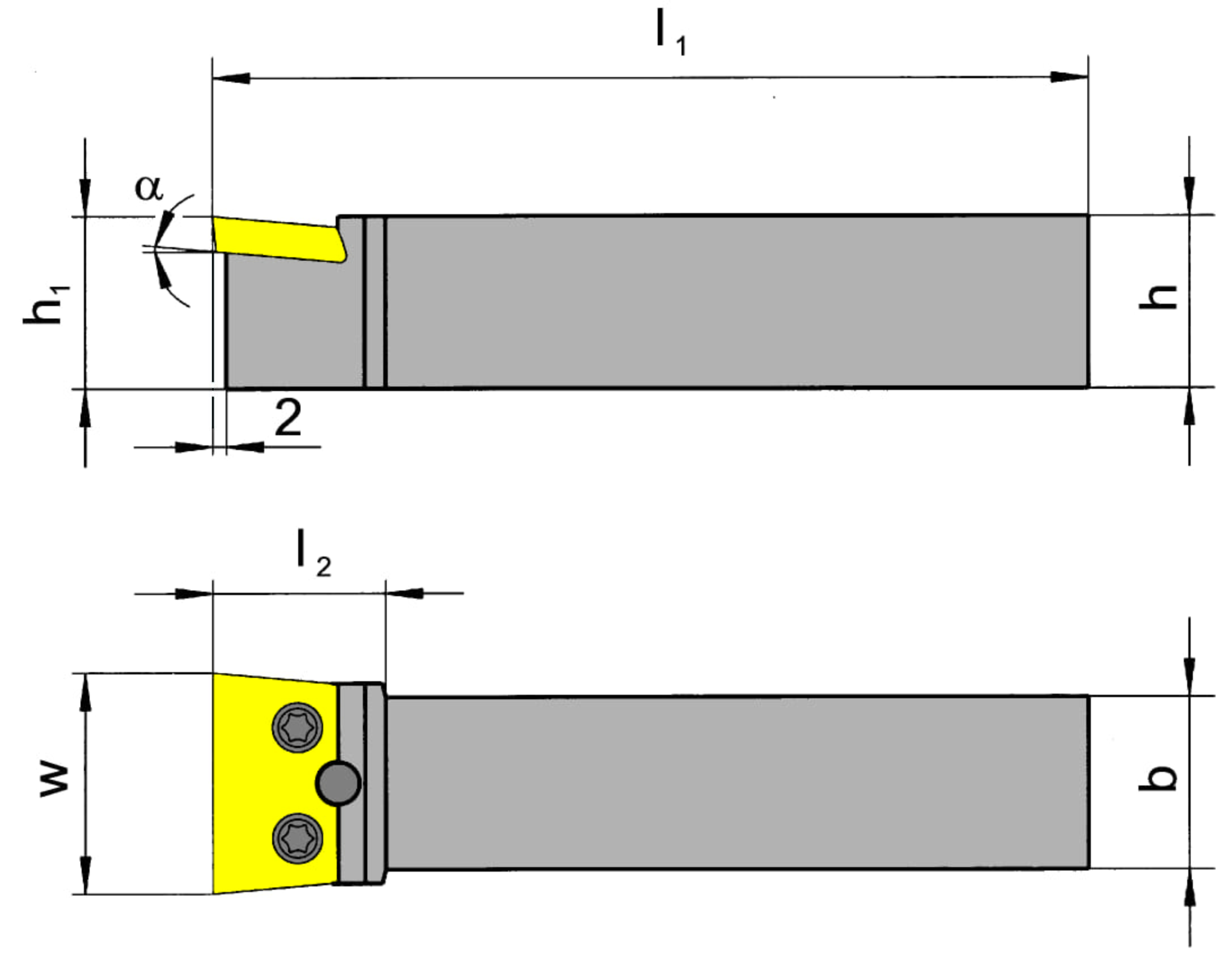

Cutting data and technical instructions

Width of groove (w)
1.26 ˝
32 mm
tool-application
static
tightening_torque
6 Nm
Semi-finished insert (Schneidplatte)
S117.0032.00
size
32
Insertion angle (α)
5 °
Working length (l2)
0.984 ˝
25 mm
Shank width (b)
1 ˝
25.4 mm
Katalog_CCTWS
1173205
Peak height (h1)
1 ˝
25.4 mm
Shank height (h)
1 ˝
25.4 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Downloads
HU117100032_20230112_191836852.STP Download
HU117100032.DXF Download
Download all files
