HU117.1000.20
Material number HU117100020

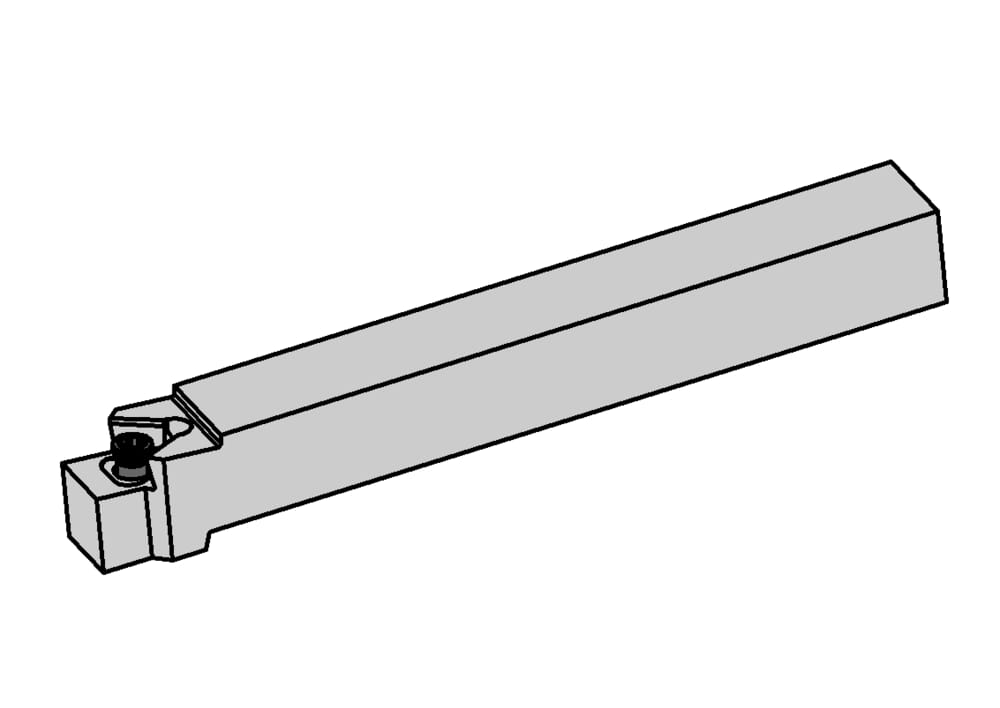

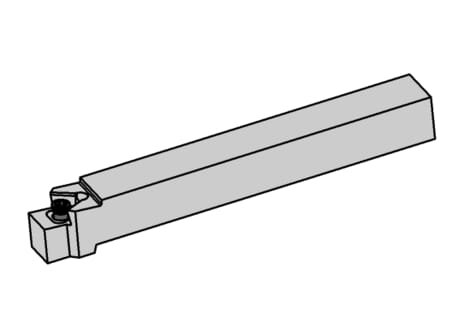

HORN Toolholders HU117.1000.20 for Turning
Width of groove (mm) (w)
0.827 ˝
21 mm
tool-application
static
tightening_torque
7 Nm

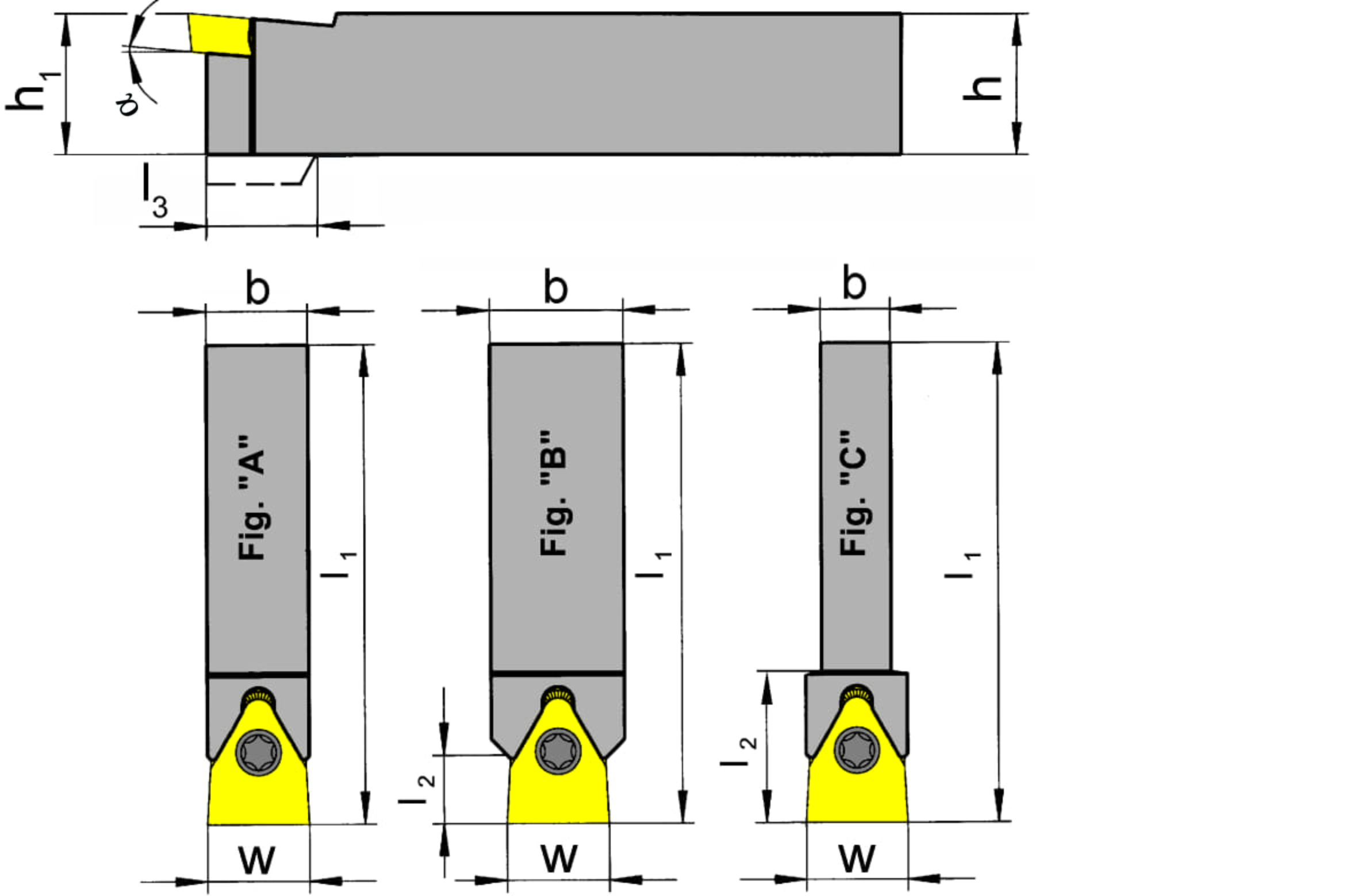

Form (Figur)
B
Semi-finished insert (Schneidplatte)
S117.0018/20.00
size
20
Insertion angle (α)
5 °
Working length (l2)
0.531 ˝
13.5 mm
Shank width (b)
1 ˝
25.4 mm
Katalog_CCTWS
1172005
Peak height (h1)
1 ˝
25.4 mm
Shank height (h)
1 ˝
25.4 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
| Downloads | |
|---|---|
| HU117100020_20230112_195857950.STP | Download |
| HU117100020.DXF | Download |
| Download all files | |
