M275.031.D25.3.04A
Material number M275031D25304A

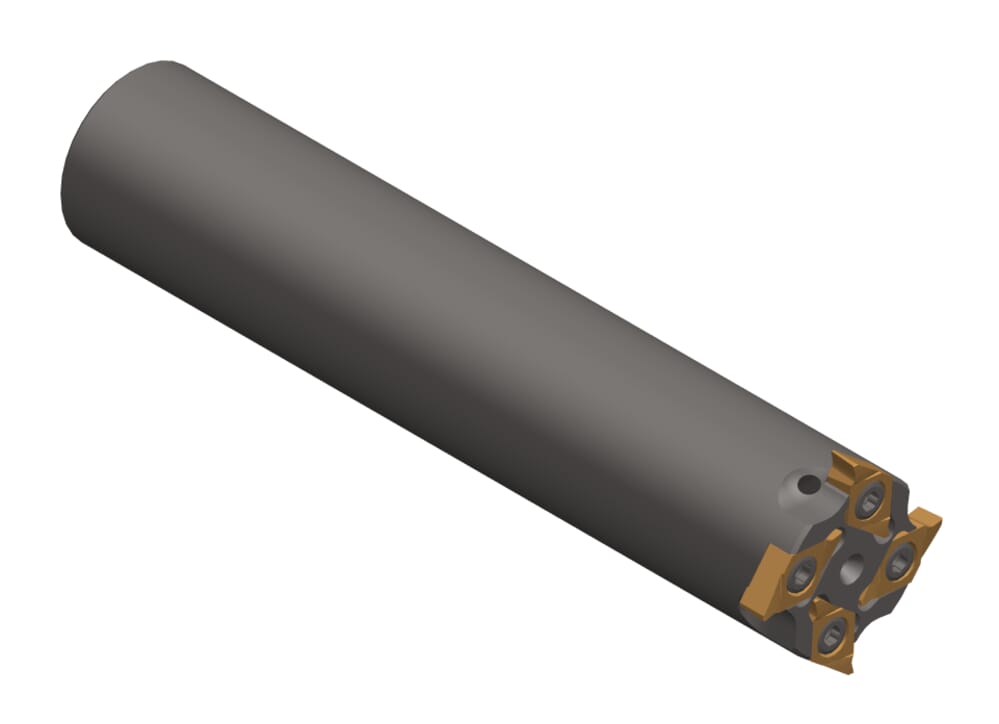

HORN Toolholder M275.031.D25.3.04A for Milling
tool-application
rotating

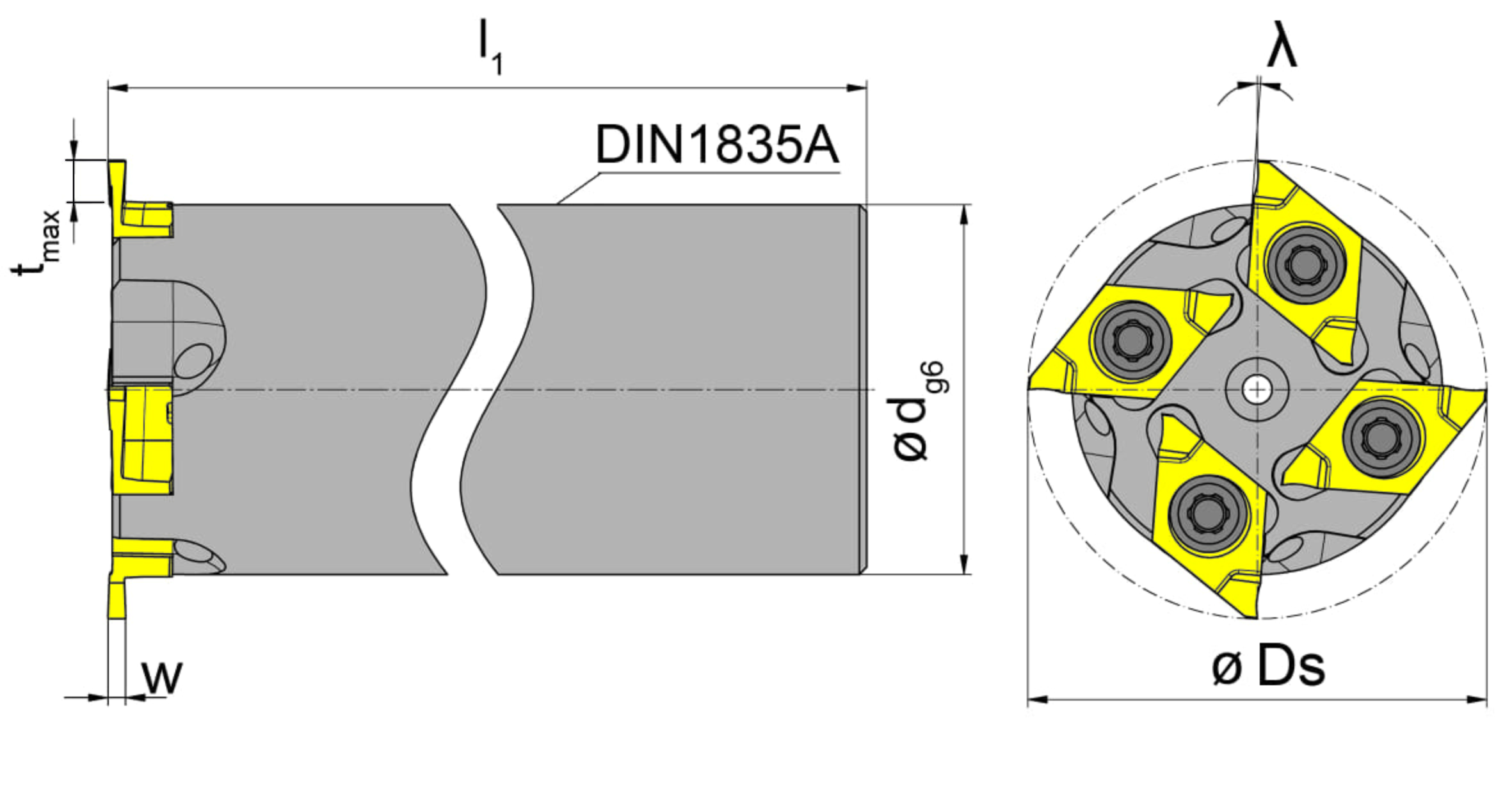

Total length insert (l1)
4.921 ˝
125 mm
Shank diameter (d)
0.984 ˝
25 mm
Katalog_CCTWS
275041R;275043R
Cutting diameter (Ds)
1.22 ˝
31 mm
| Downloads | |
|---|---|
| M275_031_D25_3_04A-ISO.XML | Download |
| M275_031_D25_3_04A-DXF.DXF | Download |
| M275_031_D25_3_04A-STP.STP | Download |
| M275_031_D25_3_04A-DIN.XML | Download |
| Download all files | |
