DSKM.2.20.63.06.L31 TS3H

Material number DSKM2206306L31TS3H

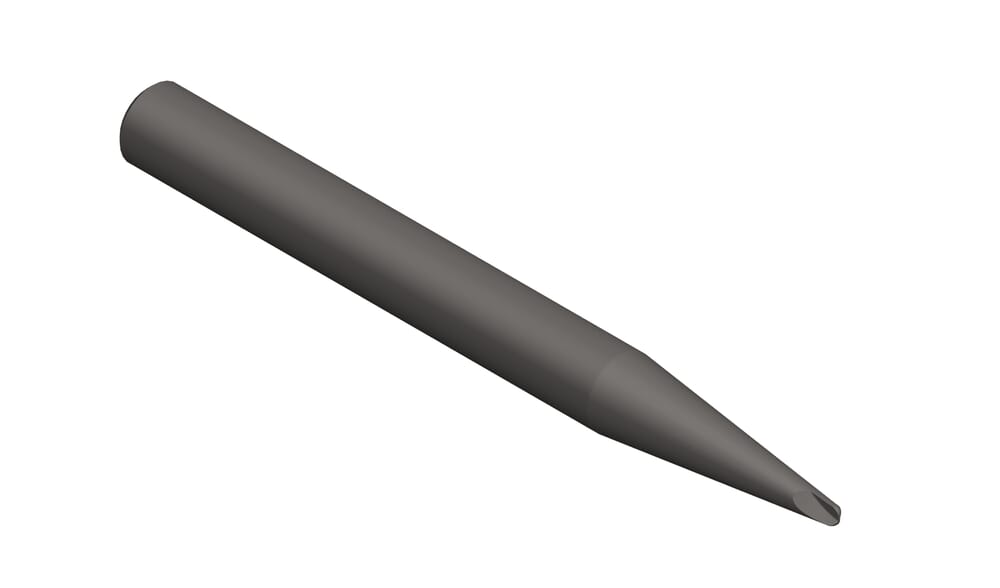

HORN DS Milling cutter DSKM.2.20.63.06.L31 TS3H for Milling

Cutting data and technical instructions

tool-application

rotating

Total length (l1)

2.48 ˝

63 mm

Effective cutting length (l2)

0.118 ˝

3 mm

Radius, full-radius (r)

0.039 ˝

1 mm

Shank diameter (d2)

0.236 ˝

6 mm

Cutting diameter (d1)

0.079 ˝

2 mm

Neck length (l3)

0.122 ˝

3.1 mm

Shank length (l4)

1.929 ˝

49 mm

Downloads
DSKM_2_20_63_06_L31.STP	Download
Download all files
