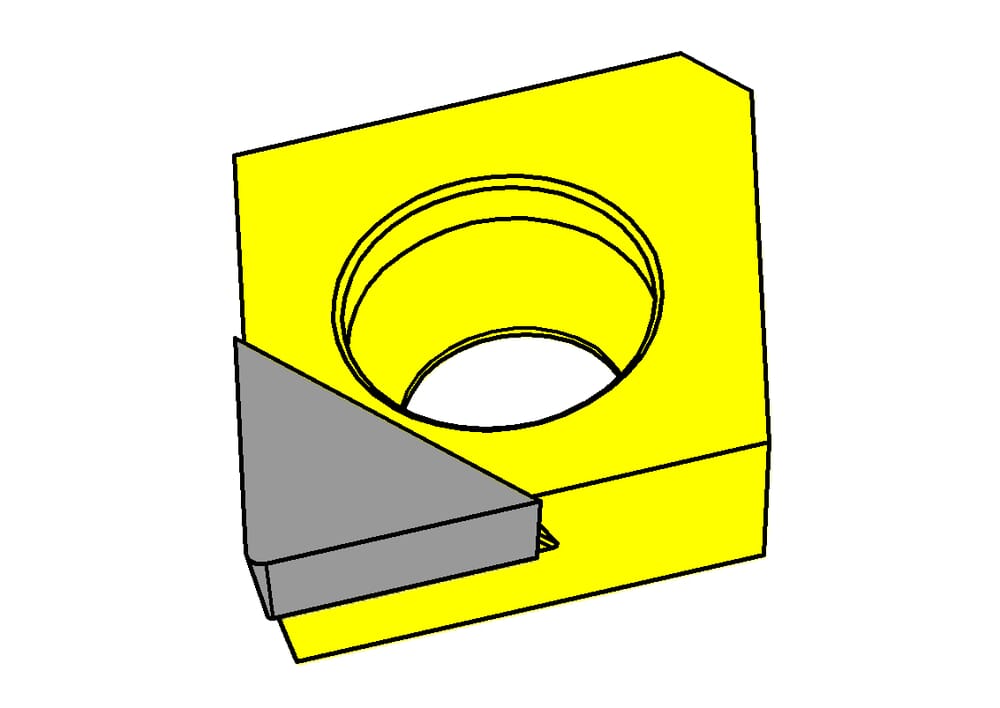

CCGW060202NH0_PICTO.TIF

CCGW060208N.H0 PD70

GEOMETRIE_H0.EPS WERKSTOFF_N.EPS WERKSTOFF_O1.EPS PLANDREHEN.EPS INNEN_BOHRUNG_AUSDREHEN.EPS PKD.EPS AUSSEN_LAENGSDREHEN.EPS

Material number CCGW060208NH0PD70

HORN Inserts CCGW060208N.H0 PD70 for Turning

Cutting data and technical instructions

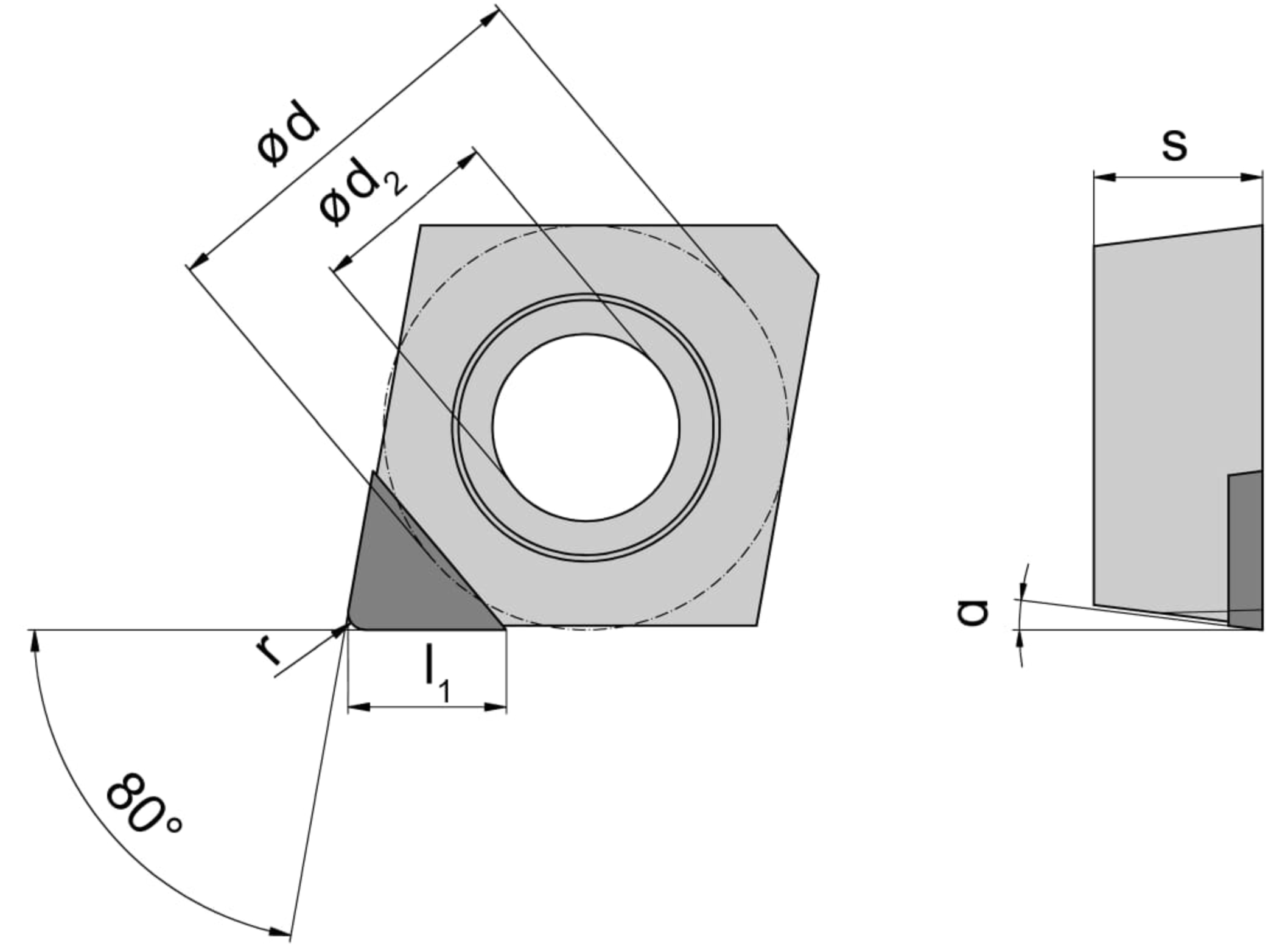

Cutting insert height, Cutting insert thickness (s)
0.094 ˝
2.38 mm
tool-application
static
Inner circle diameter (d)
0.25 ˝
6.35 mm
Effective cutting length (l1)
0.138 ˝
3.5 mm
Bore diameter (d2)
0.11 ˝
2.8 mm
Corner radius (r)
0.031 ˝
0.8 mm
