CCGW060208N.H0 PD70
Material number CCGW060208NH0PD70

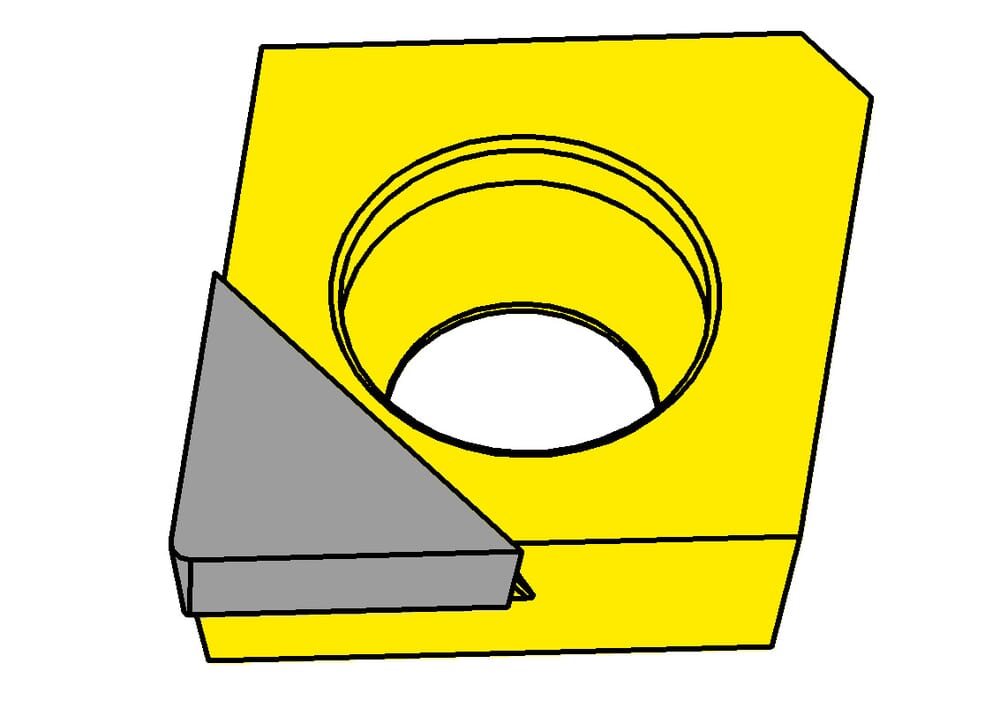

HORN Inserts CCGW060208N.H0 PD70 for Turning
Effective cutting length (l1)
0.138 ˝
3.5 mm
us-cutting
Yes
cutting
1
tool-application
static
Inner circle diameter (d)
0.25 ˝
6.35 mm
Bore diameter (d2)
0.11 ˝
2.8 mm
Cutting insert height, Cutting insert thickness (s)
0.094 ˝
2.38 mm
Corner radius (r)
0.031 ˝
0.8 mm
