C6.L220.120.K1.IK
base support
Material number C6L220120K1IK

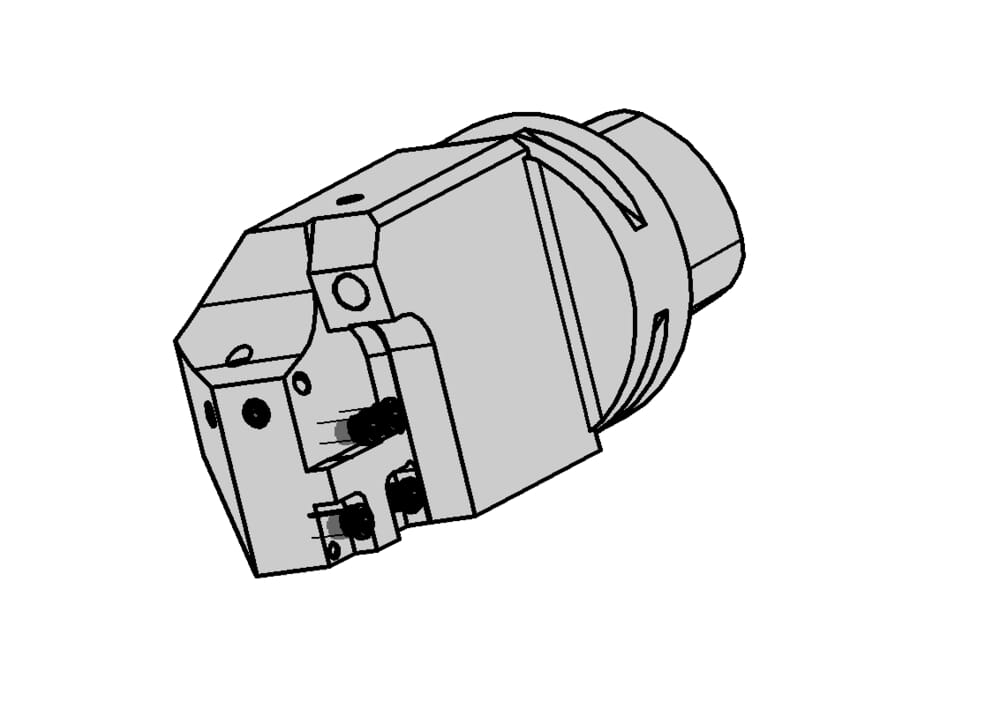

HORN base support C6.L220.120.K1.IK for Turning
System cassette from the collar (l1)
3.583
˝
91
mm
ISO_CCTMS
CCS01C0630$$$$
DIN_CCTMS
CCS06300195
Katalog_CCTWS
220002
DIN_CCTWS
HORN-22000293;HORN-22000283
ISO_CCTWS
HORN22000293$$;HORN22000283$$

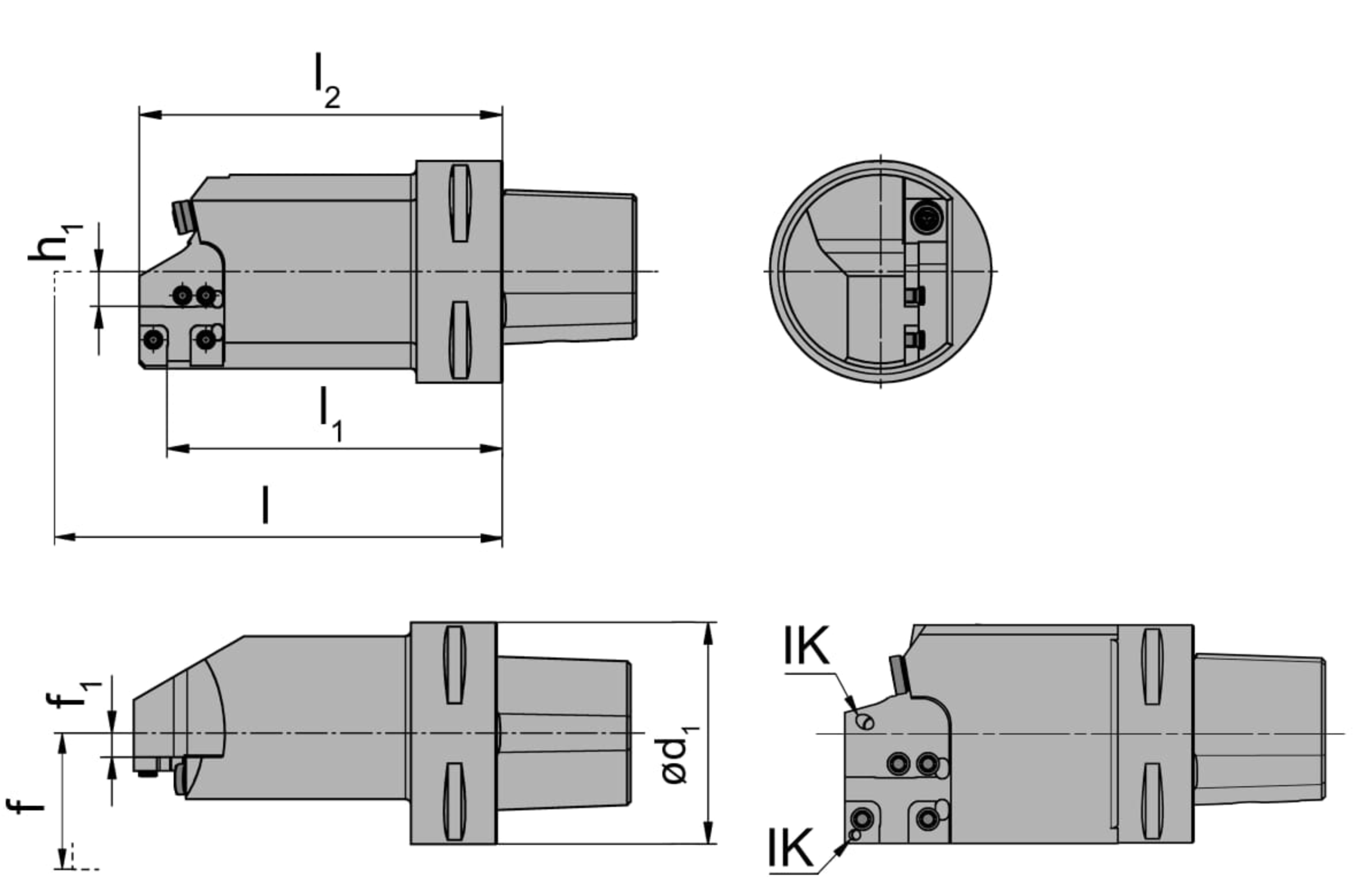

Length from bore (l2)
3.976
˝
101
mm
Adjustment dimension (f1)
0.024
˝
0.6
mm
Bore diameter rotate (d1)
2.48
˝
63
mm
Distance from center (h1)
0.492
˝
12.5
mm
| Downloads | |
|---|---|
| C6L220120K1IK_20230112_172113189.STP | Download |
| C6L220120K1IK.DXF | Download |
| Download all files | |
