C6.L220.120.K1.IK
Material number C6L220120K1IK

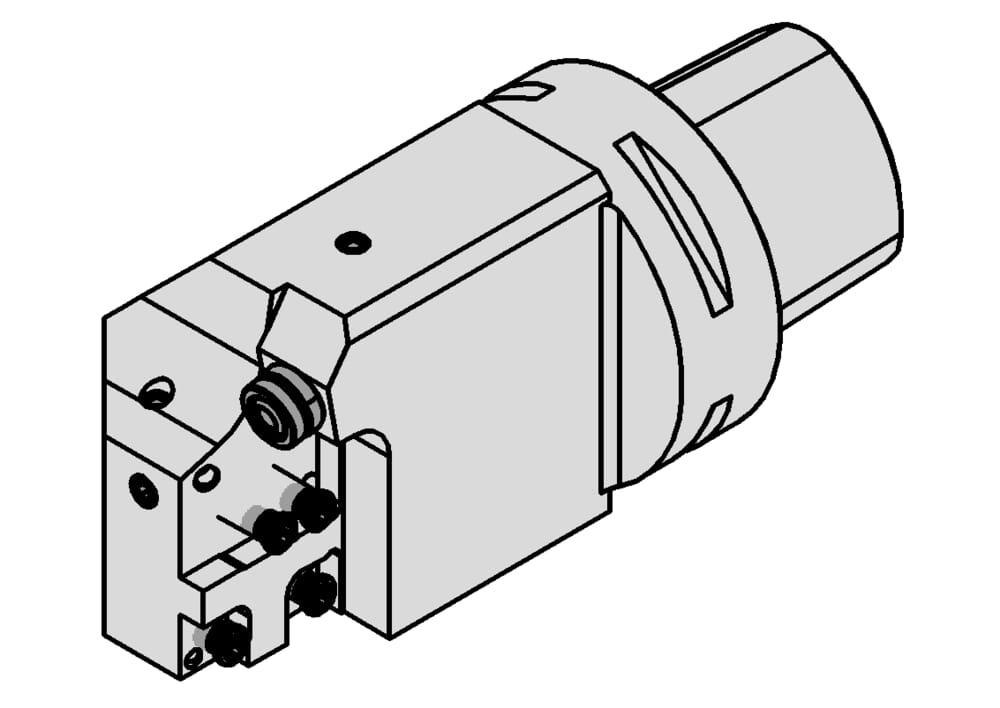

HORN base support C6.L220.120.K1.IK for Turning
tool-application
static
Adjustment dimension (formula) (f)
f1+f3
Katalog_CCTWS
220002
Distance from center (h1)
0.492 ˝
12.5 mm
Length from bore (l2)
3.976 ˝
101 mm
Adjustment dimension (f1)
0.024 ˝
0.6 mm
Bore diameter rotate (d1)
2.48 ˝
63 mm
System cassette from the collar (l1)
3.583 ˝
91 mm
