606_0080_00_EG35-PICTO.TIF

606.0080.00 EG35

ZAEHNEZAHL_Z6.EPS SEEGERRING.EPS VOLLRADIUS_NUT.EPS NUTFRAESEN.EPS TRENNFRAESEN.EPS INNEN_NUT.EPS

Material number 606008000EG35

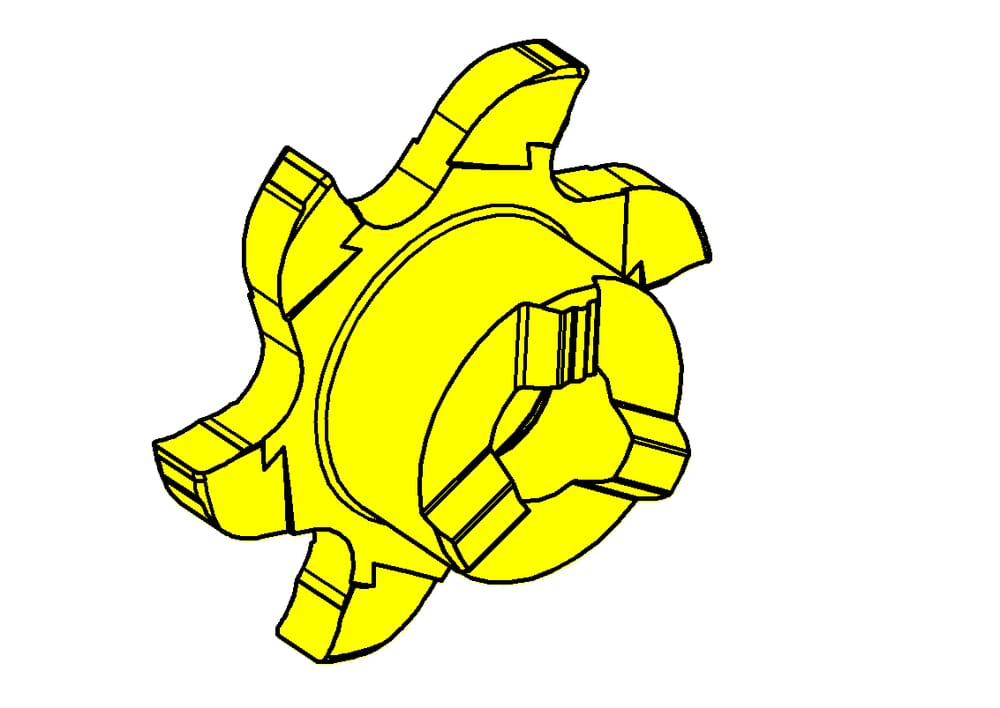

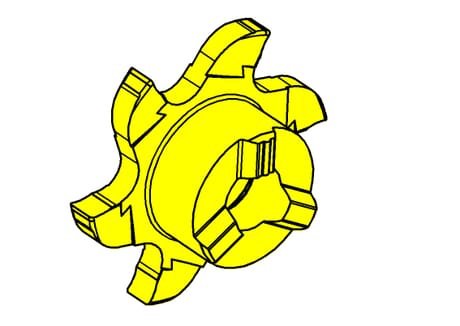

HORN Insert 606.0080.00 EG35 for Milling

Cutting data and technical instructions

Cutting diameter (Ds)
0.461 ˝
11.7 mm
Katalog_SSC
306060R
Width of groove (w)
0.031 ˝
0.8 mm
Maximum milling depth/ depth of groove (tmax)
0.098 ˝
2.5 mm
Cutting insert thickness, setting length complete (s)
0.138 ˝
3.5 mm
tool-application
rotating
Downloads
606_0080_00_EG35-DXF.DXF Download
606_0080_00_EG35-ISO.XML Download
606_0080_00_EG35-STP.STP Download
606_0080_00_EG35-DIN.XML Download
Download all files
