Material number 38302004010

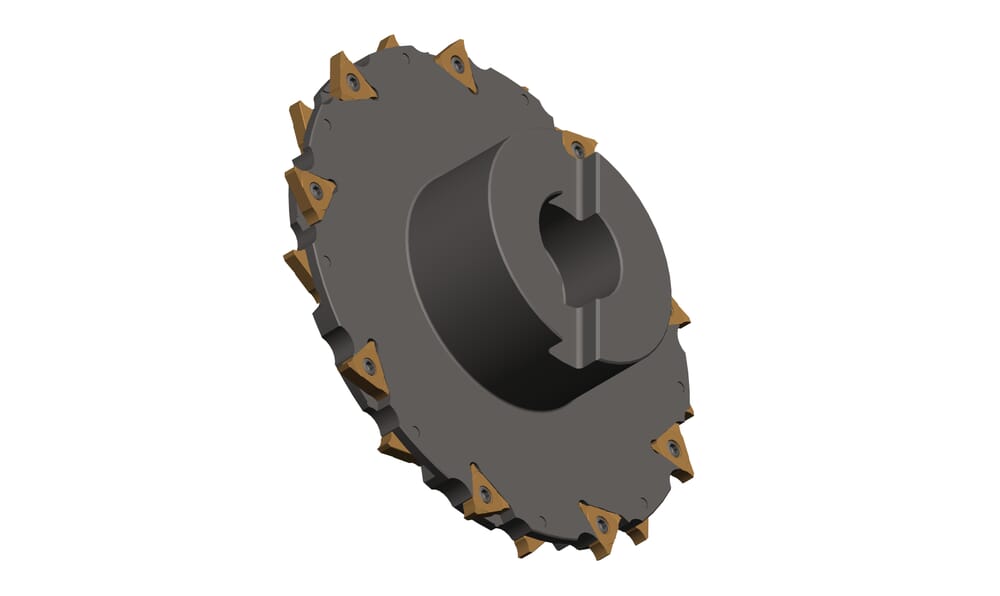

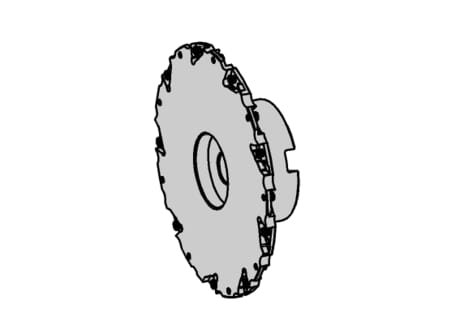

HORN Disk milling cutter 383.0200.40.10 for Milling

Cutting data and technical instructions

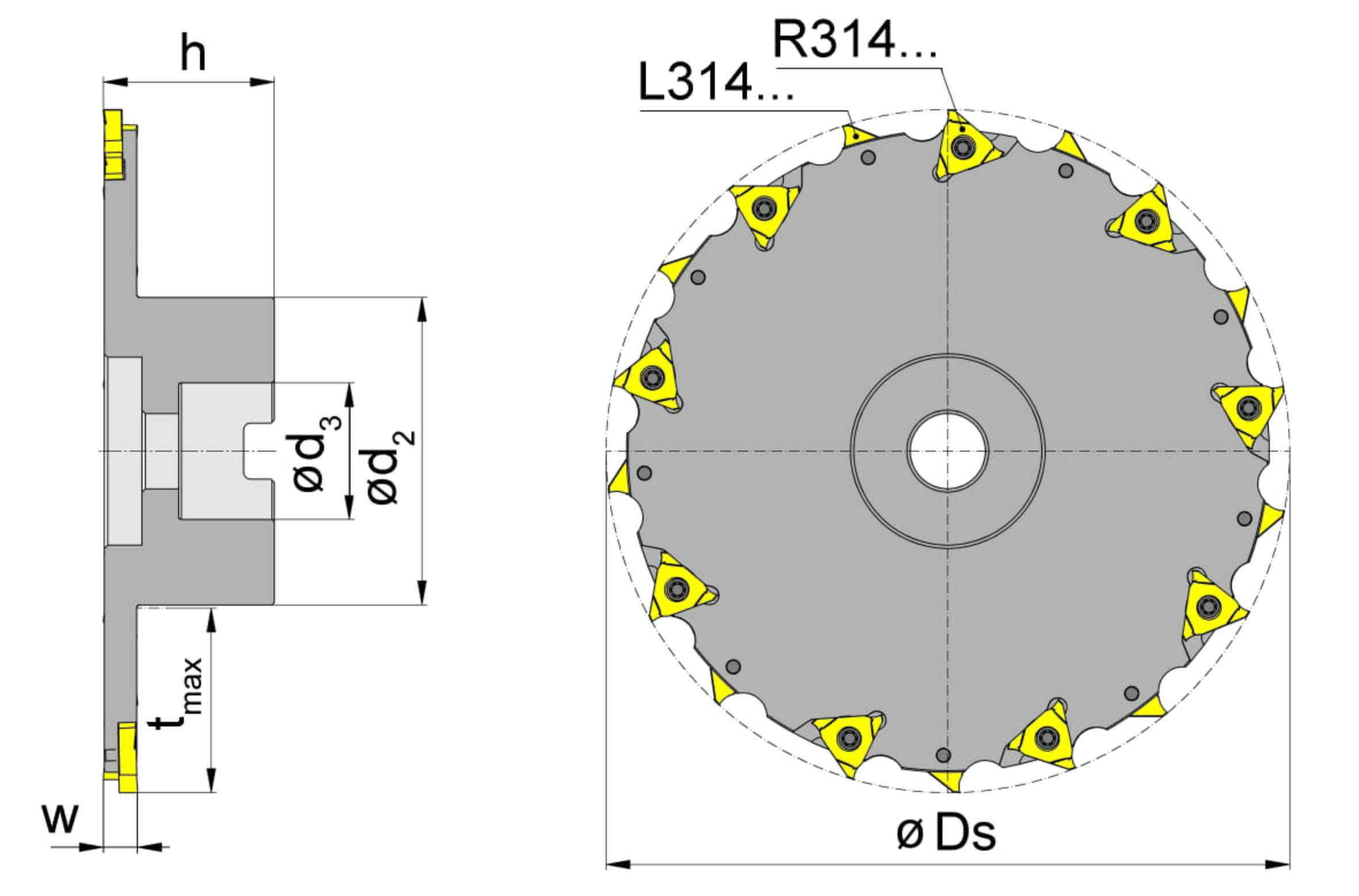

Miller length with indexable insert (h)
1.969 ˝
50 mm
tool-application
rotating
Diameter of the mandrel (d2)
3.543 ˝
90 mm
Diameter facing system for disk cutters (d3)
1.575 ˝
40 mm
Maximum milling depth (tmax)
2.126 ˝
54 mm
Cutting width maximum (w)
0.394 ˝
10 mm
Cutting diameter (Ds)
7.874 ˝
200 mm
Katalog_CCTWS
314052R;314052L
