Material number 313001428TN35

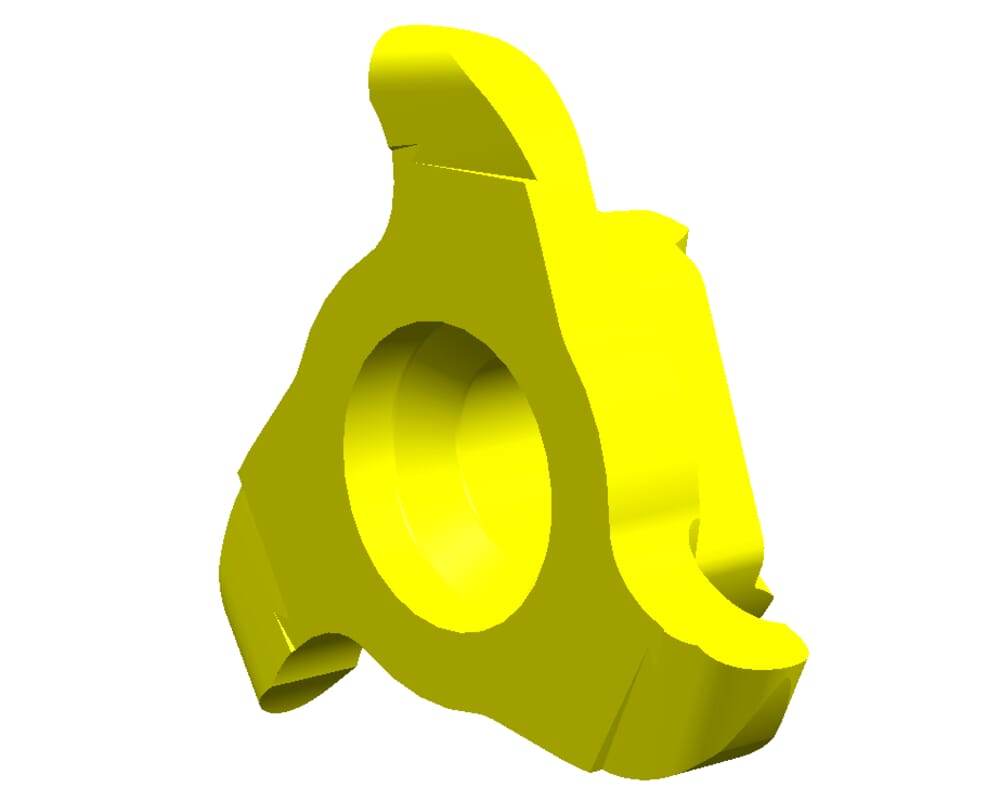

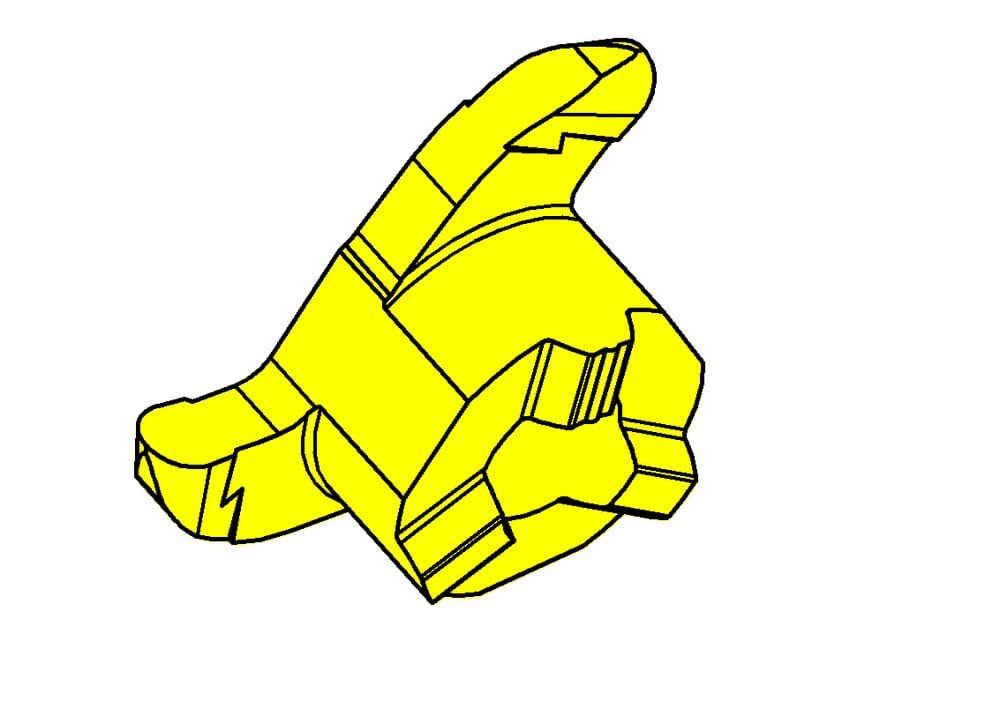

HORN Inserts 313.0014.28 TN35 for Milling

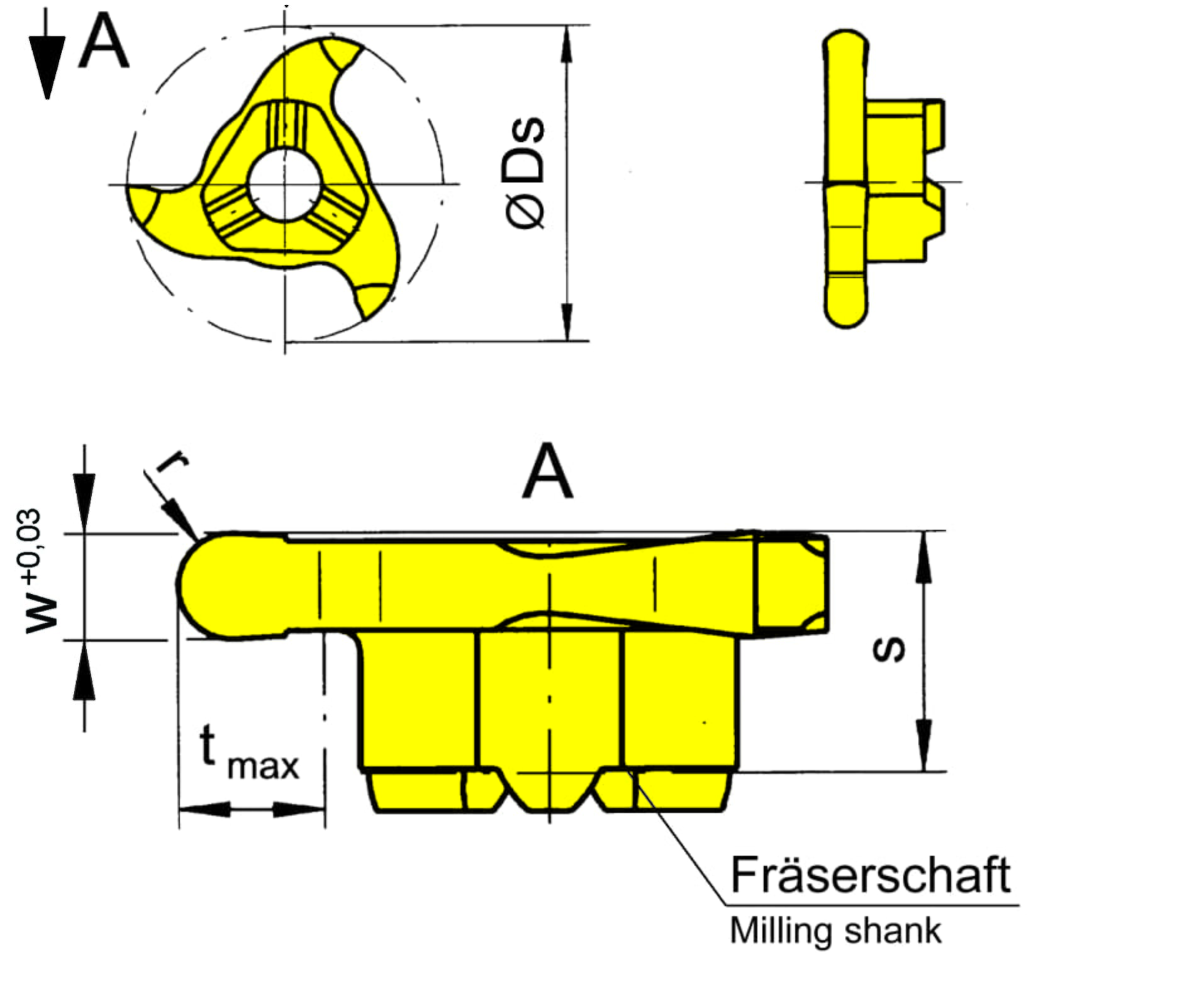

Cutting data and technical instructions

Radius, full-radius (r)

0.055 ˝

1.4 mm

tool-application

rotating

Cutting insert thickness, setting length complete (s)

0.224 ˝

5.7 mm

Maximum milling depth/ depth of groove (tmax)

0.177 ˝

4.5 mm

Width of groove (mm) (w)

0.11 ˝

2.8 mm

Cutting diameter (Ds)

0.854 ˝

21.7 mm
