308_0200_40_TI25-PICTO.TIF
308_0200_40_TI25-PICTO.TIF 308020040.TIF

308.0200.40 TI25

GEOMETRIE_40.EPS VOLLRADIUS_NUT.EPS NUTFRAESEN.EPS TRENNFRAESEN.EPS SEEGERRING.EPS INNEN_NUT.EPS ZAEHNEZAHL_Z3.EPS

Material number 308020040TI25

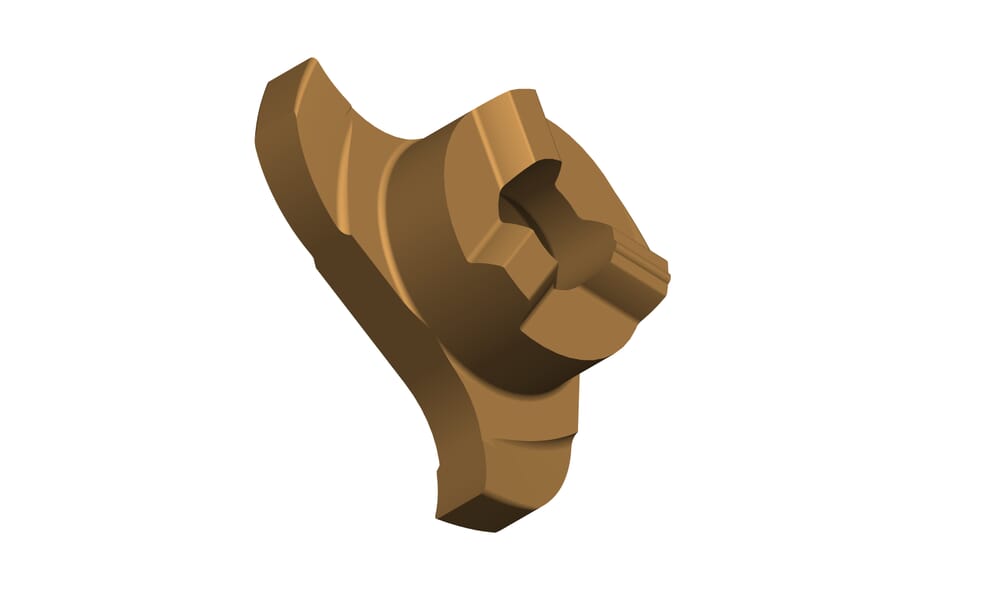

HORN Inserts 308.0200.40 TI25 for Milling

Cutting data and technical instructions

Corner radius (r)
0.008 ˝
0.2 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.177 ˝
4.5 mm
Maximum milling depth/ depth of groove (tmax)
0.138 ˝
3.5 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Cutting diameter (Ds)
0.618 ˝
15.7 mm
Katalog_SSC
308080R
Downloads
308_0200_40_TI25-ISO.XML Download
308_0200_40_TI25-DXF.DXF Download
308_0200_40_TI25-STP.STP Download
308_0200_40_TI25-DIN.XML Download
Download all files
